node-red-contrib-homie-home-assistant-discovery 1.0.1

Node-RED node that converts Homie MQTT devices into Home Assistant MQTT discovery.

npm install node-red-contrib-homie-home-assistant-discovery

Node-RED Contrib Homie Home Assistant Discovery

A Node-RED node that turns Homie MQTT devices into Home Assistant MQTT discovery entities.

The node is deliberately simple to wire: put it between the built-in mqtt in and mqtt out nodes. It reads Homie metadata from MQTT, emits retained Home Assistant discovery messages, and can send subscription-control messages back to the same mqtt in node.

It does not open its own broker connection. Node-RED already has excellent MQTT nodes with credentials, TLS, reconnect handling and broker configuration; this node focuses on Homie parsing, Home Assistant mapping, diagnostics and a clean editor experience.

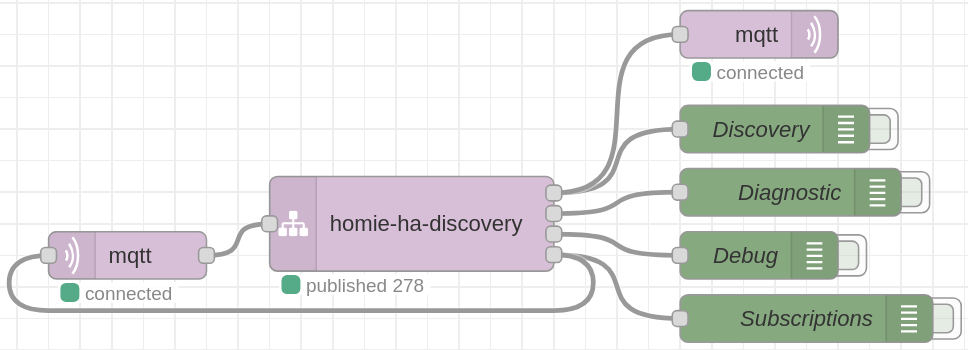

Quick Start

1. Install from the Node-RED Palette Manager.
2. Add an mqtt in node and point it to the broker used by your Homie devices.
3. Leave the mqtt in topic empty if you want dynamic subscriptions, or use homie/# for a broad manual subscription.
4. Wire mqtt in into homie-ha-discovery.
5. Wire output 1 of homie-ha-discovery into an mqtt out node on the same broker.
6. Optional but recommended: wire output 4 back into the same mqtt in node so the discovery node can manage Homie subscriptions automatically.

Output 4 is the bottom port on purpose. In a normal left-to-right flow, the feedback wire can return to the MQTT input without crossing the discovery, diagnostic and debug wires.

Outputs

Discovery messages already contain topic, payload, qos and retain, so the mqtt out node can publish them directly.

Basic Configuration

For most installations the defaults are enough:

• HA prefix: homeassistant
• Homie v5: homie
• Homie v3/v4: homie
• Versions: v3, v4 and v5 enabled
• Subscriptions: enabled
• Boolean mapping: Auto

Use Auto when you are not sure. It maps obvious lights and fans from Homie names/types, then falls back to switch for generic commandable booleans. Read-only booleans are always binary_sensor.

What Gets Discovered

The mapper uses Homie metadata first:

• read-only booleans become binary_sensor;
• commandable booleans become switch, light or fan;
• commandable numbers become number;
• commandable enums become select when options are available;
• commandable strings and similar values become text;
• read-only values become sensor;
• Homie lifecycle and optional v5 attributes become diagnostic entities.

The node is conservative. It will not guess climate, cover, lock, vacuum, alarm panels or other complex Home Assistant domains from generic Homie metadata alone. Use overrides when you know the real device semantics.

Friendly Overrides

Start without overrides. Add them only when Home Assistant needs better names, stable historical IDs, a different platform for one property or advanced MQTT discovery fields.

The most common pattern is a device with many nodes, each exposing a boolean state property. This example maps named state entities to lights, except one fan:

{
  // Shared identity for discovered Home Assistant devices.
  "deviceDefaults": {
    // Generates predictable device discovery object ids.
    "objectId": "home_{deviceId}",

    // Keeps the Home Assistant device identity stable.
    "identifiers": ["homie:{baseTopic}"],
  },

  // Shortcut: listed node/state entities are lights by default.
  "namedNodeState": {
    "platform": "light",
    "objectId": "home_{deviceId}_{nodeId}",
  },

  // Device-specific names and exceptions.
  "devices": {
    "homie/5/kitchen-board": {
      "name": "Kitchen board",
      "nodeNames": {
        "ceiling": "Ceiling light",
        "extractor": {
          "name": "Extractor fan",
          "platform": "fan",
          "icon": "mdi:fan",
        },
      },
    },
  },
}

The editor field accepts strict JSON, not JSON with comments. Use the commented example to understand the shape, then paste a comment-free version:

{
  "deviceDefaults": {
    "objectId": "home_{deviceId}",
    "identifiers": ["homie:{baseTopic}"]
  },
  "namedNodeState": {
    "platform": "light",
    "objectId": "home_{deviceId}_{nodeId}"
  },
  "devices": {
    "homie/5/kitchen-board": {
      "name": "Kitchen board",
      "nodeNames": {
        "ceiling": "Ceiling light",
        "extractor": {
          "name": "Extractor fan",
          "platform": "fan",
          "icon": "mdi:fan"
        }
      }
    }
  }
}

Exact device, node and property overrides always win over generic rules. That lets you set a broad default for a whole fleet, then make one entity a fan, switch, renamed sensor or disabled diagnostic without fighting the global configuration.

Documentation

• Node-RED usage
• Entity mapping
• Discovery overrides
• Homie compatibility

Core Package

This package wraps homie-home-assistant-discovery. The shared core owns Homie parsing and Home Assistant mapping. This Node-RED package owns the editor UI, runtime status, diagnostics and Node-RED message wiring.

Local Development

npm ci
npm run check

For sibling-repository development, keep the core homie-home-assistant-discovery package built locally before running the wrapper checks. Published installs resolve the same dependency from npm.
