@theotherwillembotha/node-red-nginxproxymanager 0.0.55

Node-RED nodes for managing Nginx Proxy Manager hosts, built on node-red-plugincore.

npm install @theotherwillembotha/node-red-nginxproxymanager

@theotherwillembotha/node-red-nginxproxymanager

Node-RED nodes for managing Nginx Proxy Manager hosts directly from your flows. Built on @theotherwillembotha/node-red-plugincore.

[!IMPORTANT] This plugin requires @theotherwillembotha/node-red-plugincore to be installed.

node-red-plugincore is declared as a dependency and npm will install it automatically alongside this package. However, due to a known Node-RED limitation, packages that arrive as transitive npm dependencies are only discovered by the Node-RED runtime on the next startup.

You have two options:

• Install @theotherwillembotha/node-red-plugincore via the palette manager or npm install first, then install this plugin — both will be available immediately without a restart.
• Install this plugin directly — node-red-plugincore will be installed automatically alongside it. Restart Node-RED once and both packages will be fully loaded.

Installation

Either use the Manage Palette option in the Node-RED editor, or run the following in your Node-RED user directory (typically ~/.node-red):

npm install @theotherwillembotha/node-red-nginxproxymanager

Nodes

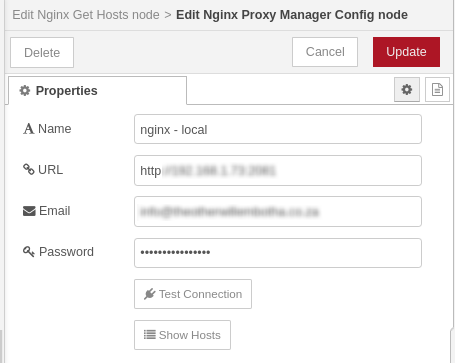

Nginx Proxy Manager Config

A config node that holds the connection details for an Nginx Proxy Manager instance. Referenced by all other nodes in this plugin.

This config node registers itself as a ReverseProxyType in the plugincore tag system. This means it will automatically appear in the reverse proxy selector of any webhook node that uses the WebhookTemplate from node-red-plugincore.

Nginx Update Host

Creates or updates a proxy host entry in Nginx Proxy Manager. The operation is determined by the presence of an id field in msg.payload:

• No id — creates a new proxy host.
• With id — updates the existing proxy host with that ID.

Inputs

: msg.payload (object) : The host configuration to create or update. See the payload schema below.

Outputs

: msg (object) : The original message, passed through unchanged after the operation completes.

Payload schema

Create a new host — all required fields must be present:

{
    domainNames: string[],        // The domain names to forward (each must be unique and not yet registered).
    scheme: "http" | "https",     // The forwarding scheme.
    forwardHost: string,          // The target host to forward requests to.
    forwardPort: number,          // The target port to forward requests to.
    accessList: string,           // The access list to bind to this host.
    cacheAssets: boolean,         // Optional: whether to cache assets.
    blockCommonExploits: boolean, // Optional: whether to block common exploits.
    websocketSupport: boolean,    // Optional: whether to enable WebSocket support.
}

Update an existing host — only include fields that should change:

{
    id: number,                   // Required: the ID of the proxy host to update.
    domainNames: string[],        // Optional.
    scheme: "http" | "https",     // Optional.
    forwardHost: string,          // Optional.
    forwardPort: number,          // Optional.
    accessList: string,           // Optional.
    cacheAssets: boolean,         // Optional.
    blockCommonExploits: boolean, // Optional.
    websocketSupport: boolean,    // Optional.
}

Example

{
    "domainNames": ["myservice.example.com"],
    "scheme": "http",
    "forwardHost": "192.168.1.35",
    "forwardPort": 8080,
    "blockCommonExploits": true,
    "websocketSupport": true
}

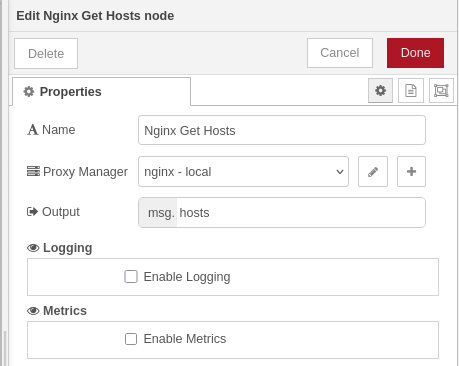

Nginx Get Hosts

Retrieves the full list of proxy hosts from Nginx Proxy Manager and writes them to a configurable property on the message.

Properties

Inputs

: msg (object) : Any message. The payload is not used; the output property is set on the incoming message and forwarded.

Outputs

: msg (object) : The original message with the specified output property set to an array of proxy host objects.

Output schema

[
    {
        id:          number,    // proxy host ID
        domainNames: string[],  // domain names served by this host
        scheme:      string,    // forwarding scheme: "http" or "https"
        forwardHost: string,    // target host
        forwardPort: number,    // target port
    }
]

Integration with node-red-plugincore

This plugin is built on @theotherwillembotha/node-red-plugincore and integrates with its subsystems:

• Logging — all action nodes (Nginx Update Host, Nginx Get Hosts) accept a logger config node via the LoggerTemplate section in their editors, enabling structured log output to Console, REST, or Loki backends.
• Metrics — all action nodes track request counts via the MetricsTemplate section, publishing Prometheus counters that can be scraped from the metrics endpoint.
• Reverse Proxy — the Nginx Proxy Manager Config node registers itself as a ReverseProxyType. Any webhook node using WebhookTemplate will automatically list this config node in its reverse proxy selector, allowing Node-RED webhooks to be registered directly in Nginx Proxy Manager via a flow.

References

• Nginx Proxy Manager — Project
• Nginx Proxy Manager — GitHub
• node-red-plugincore
• node-red-telemetry

License

ISC
