node-red-contrib-zwave-js 4.3.0

An extremely easy to use, zero dependency and feature rich Z-Wave node for Node Red, based on Z-Wave JS.

npm install node-red-contrib-zwave-js


node-red-contrib-zwave-js

THE ultimate Z-Wave node for node-red based on Z-Wave JS.
If you want a fully featured Z-Wave runtime in your node-red instance, look no further.

...node-red-contrib-zwave-js is hands down the best zwave to node red option on the planet.

@CRXPorter, July 2021.

  • 100% Javascript, so it's blazing fast and runs in the same memory space as your flows.
  • Does not require a build of any static library
  • Stable

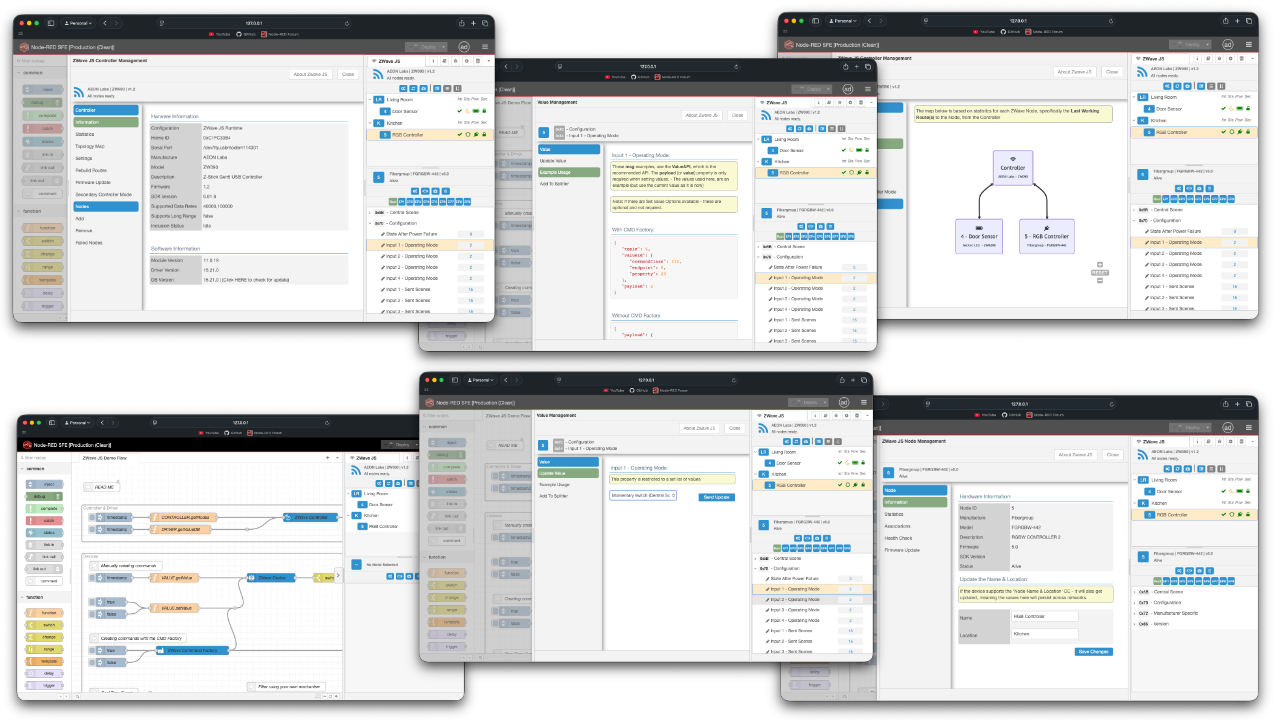

  • A Built in Node-Red User Interface tab:
    • Device Configuration
    • CC Value Updating
    • Association Management
    • Firmware Updating
    • Network Map
    • Network Actions (Include, Exclude, Heal etc etc)
  • 2 Different API models, catering for both experienced and inexperienced users.
  • Use one node for your entire network, or a node per Z-Wave device.
  • Supports multicast to send commands to mulltiple nodes at the same time.
  • Access to all supported CC's provided by Z-Wave JS.

node-red-contrib-zwave-js is based on 🔗Z-Wave JS.
Z-Wave JS is actively maintained, fast and supports secure (S0) devices - S2 is in the works.

It offers a massive amount of flexibility and is packed full of features.
The node is straightforward to use, and removes all the complexities that you would otherwise need to deal with.

Install this node via the Node Red palette menu (See Home Assistant Install if this applies to you),
and you have Z-Wave support in Node Red.

Environment Requirements

  • NodeJS >= 10.24.1
  • Node Red >= 1.3.0

Host Specific

  • Unix
    • Python v3.6, v3.7, v3.8, or v3.9
    • make
    • A proper C/C++ compiler toolchain/environment, like GCC
    • If your host is openSUSE, you may also need to do:
      • zypper install nodejs-devel
      • zypper install -t pattern devel_C_C++
  • OSX
    • Python v3.6, v3.7, v3.8, or v3.9
    • XCode Command Line Tool
  • Windows
    • Latest version of python from the store
    • Visual C++ Build Environment/tools
    • Launch cmd, npm config set msvs_version 2017

The gist

  • Add the node(s) into your flow

  • Select the serial port that represents your USB Zwave radio.

  • Set an encryption key if you want to use Secure devices.

    • Plain text (16 characters)
    • Or hex array (16 bytes) [0x01,0x02]
  • Listen for, and send commands using the node.


Home Assistant Install

Please note: This is a self contained Z-Wave driver for Node Red, it will not work along side the Z-Wave add-on for Home Assistant.
If however, you use the Node Red add-on, and want Z-Wave to be managed from with-in Node Red, see below for instructions.

  • Do not attempt to install this node, via the palette menu - it will likely not install some serial port stuff.
  • Edit the Node Red add-on configuration as below (specifically system_packages and npm_packages)
  • Restart the add-on/Node Red - and you should be ready to go.
system_packages:
  - make
  - python3
  - g++
  - gcc
  - linux-headers
  - udev
npm_packages:
  - serialport
  - node-red-contrib-zwave-js

Node config (Advanced Driver Settings)

Custom CFG Dir
Z-Wave JS allows a custom directory, that will be used to search for additonal Device configuration files.
Note: if an internal device config is found to have the same identifiers, the one in the directory folder will take priority.
Please also note, the specified directory will be recursively scanned.

Disk IO Throttle
If using the ValueAPI Mode (see further down), the values received from getValue, will be from a cache.
This cache is periodically written to disk. This setting allows you to control that behavioir.
Unless there is a specific reason to do so - its best to leave it as 'Normal'

Setting Description
Normal A compromise between the two options below
Slow At most, every 5 minutes or after 500 changes
Fast Immediately writes every change to disk

Node Types

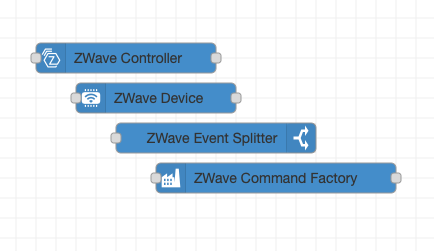

There are 2 node types.

Z-Wave JS Controller:
Allows a single point of entry to/from your zwave network - This is the main Node.
You can address any zwave device, and recieve updates from them, using this node.

ZWave Device:
Works in conjunction with the Controller Node above, but represents a single zwave device.
Multiple copies of this node, can be used across different flows.

Usage Modes

node-red-contrib-zwave-js, is split into 3 different usage modes.
The first 2 of these modes, is probably what you're intersted in.
Each have there own pros and cons.

🔗CC API (Z-Wave JS Command Classes API)
This mode is quick to get up and running, and is a good starting point.

🔗Value API (Z-Wave JS Value API)
This mode requires a little more understanding, but is preferred by the pros.

🔗GUI
This mode comes as a node-red UI. It's more for managing your network, but can alter certain values.

Whatever your poison, the node will inject the following events, into your flow.

event node object Meaning
NODE_ADDED The ID of the added node A Node Was Added
NODE_REMOVED The ID of the removed node A Node Was Removed
NODE_NAME_SET The ID of the affected node Node name was set
NODE_LOCATION_SET The ID of the affected node Node location was set
INCLUSION_STARTED "Controller" Bool : Secure Include Include Mode Started
INCLUSION_STOPPED "Controller" Include Mode Stopped
INCLUSION_FAILED "Controller" Include Failed
EXCLUSION_STARTED "Controller" Exclude Mode Started
EXCLUSION_STOPPED "Controller" Exclude Mode Stopped
EXCLUSION_FAILED "Controller" Exclude Failed
NETWORK_HEAL_DONE "Controller" The Heal outcome Done Healing Network
NETWORK_HEAL_STARTED "Controller" Started Healing Network
NETWORK_HEAL_STOPPED "Controller" Stopped Healing Network
CONTROLLER_RESET_COMPLETE "Controller" The controller was reset
VALUE_UPDATED The source Node ID The objects command content A Value Was Updated
VALUE_NOTIFICATION The source Node ID The objects command content A Value Notification Was Received
NOTIFICATION The source Node ID Command Class ID & Event Data A Notification Was Sent
WAKE_UP The source Node ID A Node Has Woken Up
SLEEP The source Node ID A Node Has Gone To Sleep
INTERVIEW_COMPLETE The source Node ID The node has been interviewed
INTERVIEW_FAILED The source Node ID Detailed Error Info Could not interview node
INTERVIEW_STARTED The source Node ID Node interview started
NODE_LIST "Controller" ZWaveNode[] Response to getNodes
VALUE_ID_LIST The source Node ID ValueID[] Response to getDefinedValueIDs
GET_VALUE_RESPONSE The source Node ID Value & Value ID Response to getValue
GET_VALUE_METADATA_RESPONSE The source Node ID Metadata & Value ID Response to getValueMetadata
ASSOCIATION_GROUPS The source Node ID Association Group Info[] Response to getAssociations
ALL_ASSOCIATION_GROUPS The source Node ID Association Group Info[] Response to getAllAssociations
ASSOCIATIONS The source Node ID Configured Associations Response to getAssociations
ALL_ASSOCIATIONS The source Node ID Configured Associations Response to getAllAssociations
ASSOCIATIONS_ADDED The source Node ID Associations Were Added
ASSOCIATIONS_REMOVED The source Node ID Associations Were Removed
ALL_ASSOCIATIONS_REMOVED The source Node ID All Associations Were Removed
VALUE_DB "N/A" A Structured Value DB object Response to getValueDB
NODE_NEIGHBORS The source Node ID Array of Node IDs Response to getNodeNeighbors
NODE_KEEP_AWAKE The source Node ID Bool : Keep Awake Status Response to keepNodeAwake
CURRENT_RF_REGION "Controller" The current RF Region Response to getRFRegion
RF_REGION_SET "Controller" The RF Region that was set Response to setRFRegion
RF_STATUS "Controller" The RF Status Response to toggleRF
FIRMWARE_UPDATE_COMPLETE The source Node ID Result Status Firmware Update finished
FIRMWARE_UPDATE_STARTED The source Node ID Target Chip Firmware Update Started
FIRMWARE_UPDATE_ABORTED The source Node ID Firmware Update Aborted
NODE_STATISTICS "N/A" Stats object Response to getNodeStatistics
CONTROLER_STATISTICS "N/A" Stats object Response to getControllerStatistics

And such event(s) will look like this.

{
  payload: {
    node: 2,
    event: "VALUE_UPDATED",
    timestamp: "23-12-2020T12:23:23+000",
    object: {}
  }
}

Controller/Driver and Association based methods

Accessing the UI, will provide you with most of the network management operations.
But, if you prefer, you can action them via a node message.

The ControllerAPI, DriverAPI and AssociationsAPI modes do not require a node ID.
However! Some Controller and Association methods themself, actually need a Node ID as part of the required params.

Some Association methods require an Object, these are detailed at the bottom.

mode method params
ControllerAPI beginHealingNetwork
ControllerAPI stopHealingNetwork
ControllerAPI beginInclusion (See Notes) [Include Non-Secure: Bool (optional)]
ControllerAPI stopInclusion
ControllerAPI beginExclusion
ControllerAPI stopExclusion
ControllerAPI hardReset (See Notes)
ControllerAPI proprietaryFunction (See Notes) [Serial Function ID: Number, Data: Buffer]
ControllerAPI refreshInfo [Node ID: Number]
ControllerAPI getNodes
ControllerAPI setNodeName [Node ID: Number, Node Name: String]
ControllerAPI setNodeLocation [Node ID: Number, Node Location: String]
ControllerAPI getNodeNeighbors [Node ID: Number]
ControllerAPI keepNodeAwake [Node ID: Number, Bool]
ControllerAPI getRFRegion (See Notes)
ControllerAPI setRFRegion (See Notes) [RFRegion: Enum]
ControllerAPI toggleRF [Status: Bool]
ControllerAPI removeFailedNode [Node ID: Number]
ControllerAPI replaceFailedNode (See Notes) [Node ID: Number, Include Non-Secure: Bool (optional)]
ControllerAPI beginFirmwareUpdate [Node ID: Number, Target Chip: Number, Filename: String, Data: Buffer]
ControllerAPI abortFirmwareUpdate [Node ID: Number]
AssociationsAPI getAssociationGroups [AssociationAddress: Object]
AssociationsAPI getAllAssociationGroups [Node ID: Number]
AssociationsAPI getAssociations [AssociationAddress: Object]
AssociationsAPI getAllAssociations [Node ID: Number]
AssociationsAPI addAssociations [AssociationAddress: Object, Group ID: Number, AssociationAddress: Object[]]
AssociationsAPI removeAssociations [AssociationAddress: Object, Group ID: Number, AssociationAddress: Object[]]
AssociationsAPI removeNodeFromAllAssociations [Node ID: Number]
DriverAPI getValueDB [Node ID: ...Number (Optional)]
DriverAPI getNodeStatistics [Node ID: ...Number (Optional)]
DriverAPI getControllerStatistics

To start an in-secure Inclusion, you will do.

let Message = {
    payload: {
        mode: "ControllerAPI",
        method: "startInclusion",
        params: [true]
    }
}
return Message;

Notes on ControllerAPI -> Set/Get RF Region

Support for these Commands, must be proivided by your stick.

Notes on ControllerAPI -> beginInclusion/replaceFailedNode

By default, the include process will only include secure devices, if you want to include non-secure devices, provide a true value

Notes on ControllerAPI -> hardReset

A one-way ticket for wiping out all the configuration on the controller.
Once you call this method, there is no going back - you are hearby WARNED of the consequences.

Notes on ControllerAPI -> proprietaryFunction

The Data argument, must ONLY contain the data portion of the request
As an example, this byte array [0x01, 0x08, 0x00, 0xF2, 0x51, 0x01, 0x00, 0x05, 0x01, 0x51]
disables the LED on the GEN 5 Z-Stick, breaking it down we have:

0x01 - SOF
0x08 - Total Length
0x00 - REQ
0xF2 - Aeotec Set Configuration Function
0x51 - LED Configuration
0x01 - Configuration Value Size
0x00 - Value
0x05 - ??
0x01 - ??
0x51 - Serial API Checksum

This means we do:

/* LED Configuration
 * Configuration Value Size
 * Value
 * ??
 * ??
 */

let _Buf_OFF = Buffer.from([0x51, 0x01, 0x00, 0x05, 0x01])
let _Buf_ON = Buffer.from([0x51, 0x01, 0x01, 0x05, 0x01])

let Message = {
    payload: {
        mode: "ControllerAPI",
        method: "proprietaryFunction",
        params: [0xF2, _Buf_OFF]
    }
}
return Message

SOF, Total Length, REQ & the Serial API Checksum will be provided for you.

Object Structures

AssociationAddress

{
    nodeId: Number,
    endpoint: Number (optional - defaults to 0)
}
