node-red-contrib-ntrip 0.2.2
Node for ntrip and rtcm handling.
NTRIP nodes for node-red
...
Thanks for your donation
If you want to support this free project. Any help is welcome. You can donate by clicking one of the following links:
This package contains nodes for connecting to a NTRIP server.
Installation
You can install the nodes using node-red's "Manage palette" in the side bar.
Or run the following command in the root directory of your Node-RED installation
npm install node-red-contrib-ntrip --save
Dependencies
This package depends on the following libraries
Credits
👥 Contributors
Changelog
Changes can be followed here
NTRIP Client Node
This node connects to a NTRIP caster and can be used in two different modes:
- upload
- download
Download Mode
Configuration
For downloading data from a NTRIP caster you need to provide the following information
- host - the IP address or hostname of the NTRIP server (e.g. rtk2go.com)
- port - the Port number of the NTRIP server (usually this is 2101)
- mountpoint - the mountpoint of the stream data at the NTRIP server (enter name without /)
Depending on the version of the NTRIP caster you need to provide
- username - the username (e.g. your e-mail address when using rtk2go.com)
- password - the password (e.g. none)
Some NTRIP casters only send data after the client provided its location via a GGA sentence. In this case you can provide the X Y Z coordinate here or inject it like illustrated in the example flow
- X - the X coordinate
- Y - the Y coordinate
- Z - the Z coordinate
- interval - the interval in milliseconds to transmit the location to the NTRIP server.
Provide Client Location (XYZ) to NTRIP caster
If you want more control about sending your location to the NTRIP server, then you
can inject the values as described in the following example:

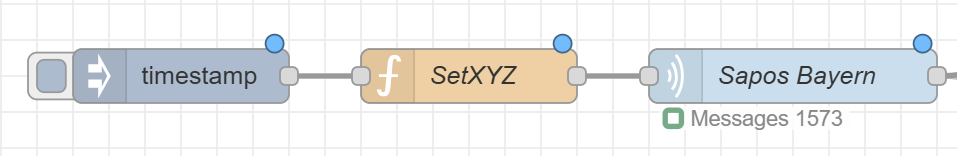

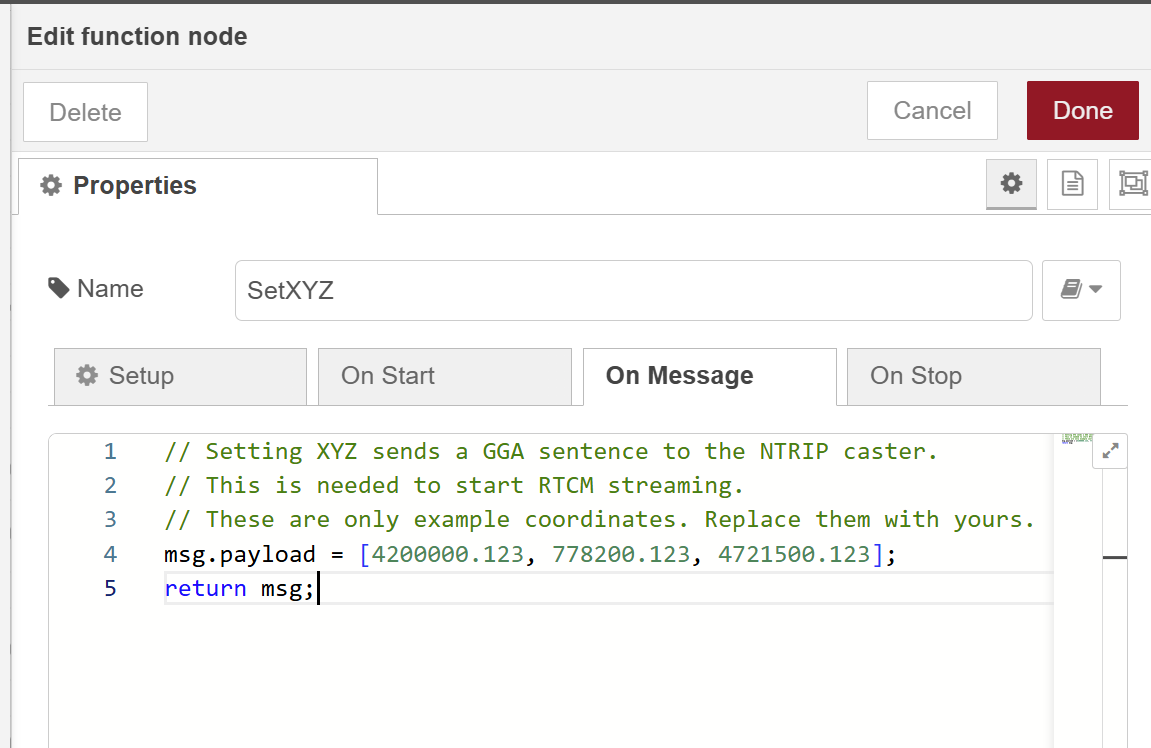

The function node simply creates an array of X Y Z coordinates in msg.payload. Sapos NTRIP casters for example only needs one GGA sentence to initiate streaming.
See also example flow SetXYZ flow
Upload Mode
Configuration
The configuation properties are the same as described for the download mode. You need to provide these additional properties:
- Authentication Mode - the mode the NTRIP caster accepts.
- Pass through data - if checked all data is sent to the output for further processing.
Authentication Modes
Legacy
This mode initiates the uploading to a mountpoint using plan text.
SOURCE ${mountpoint}\r\n\r\n
or with password and unsername
SOURCE ${password} /${mountpoint}\r\nSource-Agent: NTRIP ${username}\r\n\r\n
Legacy (Basic Auth)
This hybrid mode initiates the uploading to a mountpoint using plan text and Basic Auth.
SOURCE ${mountpoint}\r\nAuthorization: Basic ${authorization}\r\n\r\n
NTRIP V1
This mode initiates the uploading to a mountpoint using HTTP with Basic Auth.
POST /${mountpoint} HTTP/1.0\r\nUser-Agent: NTRIP ${userAgent}\r\nAuthorization: Basic ${authorization}\r\nContent-Type: gnss/data\r\n\r\n
NTRIP V2
THis mode is equal to NTRIP V1 with some more data.
POST /${mountpoint} HTTP/1.1\r\nHost: ${host}:${port}\r\nUser-Agent: NTRIP ${userAgent}\r\nAuthorization: Basic ${authorization}\r\nNtrip-Version: Ntrip/2.0\r\nContent-Type: gnss/data\r\nConnection: keep-alive\r\n\r\n
RTCM Decoder Node
This node accepts binary RTCM data. The node accepts either a single or multiple RTCN messages. The converted messages are sent one by one to the output in the following format.
msg.payload =
{
rtcm, // RTCm message number
messageType, // a string indicating a readyble RTCM message name
message, // a structure containing all decoded data
input, // the raw input message
};
NMEA Decoder Node
This node accepts binary NMEA data. The node accepts either a single or multiple NMEA messages. The converted messages are sent one by one to the output in the following format.
msg.payload =
{
messageType, // a string indicating a readyble RTCM message name
message, // a structure containing all decoded data
input, // the raw input message
};
Examples
Examples are stored in the examples folder an can be imported from within node-red's sidebar via import.
Download data from NTRIP caster
Consuming Data is straight forward. Connect to a NTRIP caster, select download mode and pass the data to other nodes for further processing: in this example 2 decoder are used. The NMEA node is only to show that the stream can be split. (It is useless as RTK2Go does not send any NMEA strings) See also example flow RTK2Go flow
Provide XYZ dato to NTRIP caster
This example is the same as the RTK2Go one except for the fact that Sapos requires sending a GGA sentence before transmitting RTCM sentences. See also example flow Sapos flow
Consume data from TCP source (RTKBase)
Next to retrieving data from a remote NTRIP caster you can also consume the RTCM stream from a local TCP source like a RTKBase Station (e.g. https://github.com/Stefal/rtkbase). You can upload the data to any NTRIP caster like Onocoy, Centipede, RTKOnline, ... and use the same data on your own. To accomplish this you can use node-red's TCP receiver node. You need to activate a TCP server either on your ESP32 XBee or RTKBase. See also example flow TCP flow
Upload data to NTRIP caster
Uploading is straight forward, however authentication might be tricky. You need to know the mountpoint and credentials before you can initiat an upload. Not all NTRIP casters accept the same way of authentication. You can test with a local demo version of SNIP by creating a raw TCP input stream. (SNIP can be found here https://www.use-snip.com) See also example flow Upload flow
