node-red-contrib-majordomus 0.1.6

Smart Home nodes not only for Majordomus platform.

npm install node-red-contrib-majordomus

Majordomus for node-red

Scheduler

Scheduler Node

The Scheduler node allows you to configure time-based rules to control your application.

Features

• Define rules for specific days or day ranges.
• Set start and end times for each rule.
• Assign a value to output during active periods.

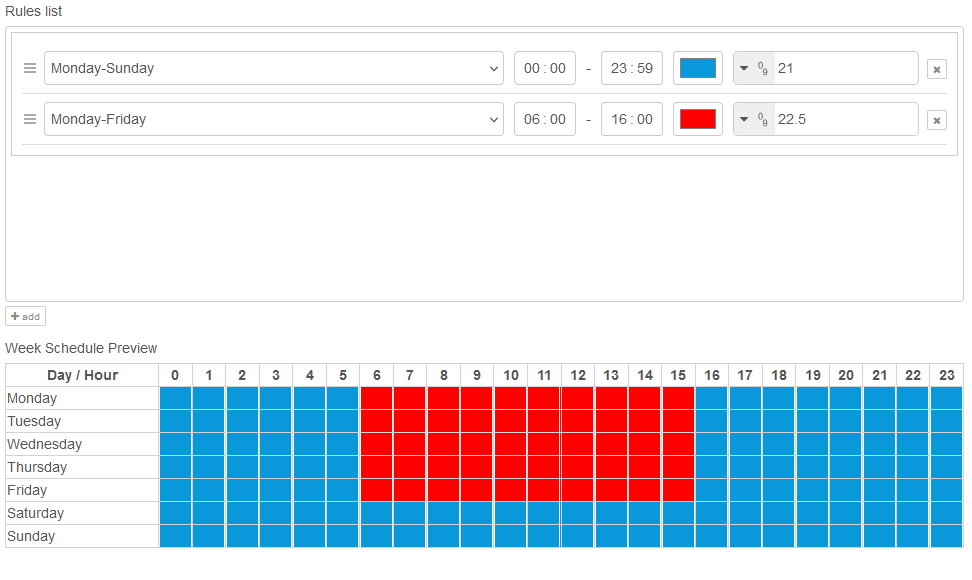

• Visualize rules in a weekly schedule preview.

Configuration Options

Name

Specify a unique name for the node.

Rules List

Manage a list of time-based rules:

• Day Range: Select specific days or day ranges (e.g., Monday-Sunday).
• Start Time: Define when the rule becomes active.
• End Time: Define when the rule becomes inactive.
• Value: Set the value to output during the active period.
• Color: Assign a color to visualize the rule in the preview table.

Outputs

The node outputs a value defined in the rules when the current time falls within a rule's active period.

Examples

Workday Schedule

• Day Range: Monday-Friday
• Time: 09:00 - 17:00
• Output Value: "Working Hours"

Weekend Relaxation

• Day Range: Saturday-Sunday
• Time: 10:00 - 22:00
• Output Value: "Relaxing"

Status Indicators

• Green dot: Indicates an active rule is being executed.
• Gray ring: No active rules match the current time.

More Information

Visit the project's GitHub repository or (https://www.majordomus.tech)
