node-red-contrib-haystack 0.1.1

Node-RED nodes for Project Haystack authentication and HTTP operations.

npm install node-red-contrib-haystack

node-red-contrib-haystack

Node-RED nodes for Project Haystack authentication and HTTP ops against Project Haystack servers such as Haxall, FIN, SkySpark, and other Haystack-compatible platforms.

Project Haystack:

• https://project-haystack.org/

Included nodes

• haystack-server: config node for URL, project path, credentials, and token caching
• haystack-request: generic Haystack op runner
• haystack-read: convenience node for read
• haystack-hisread: convenience node for hisRead
• haystack-eval: convenience node for eval
• haystack-point-write: convenience node for pointWrite

Install for local development

npm install

Install

Run in your Node-RED user directory:

npm install node-red-contrib-haystack

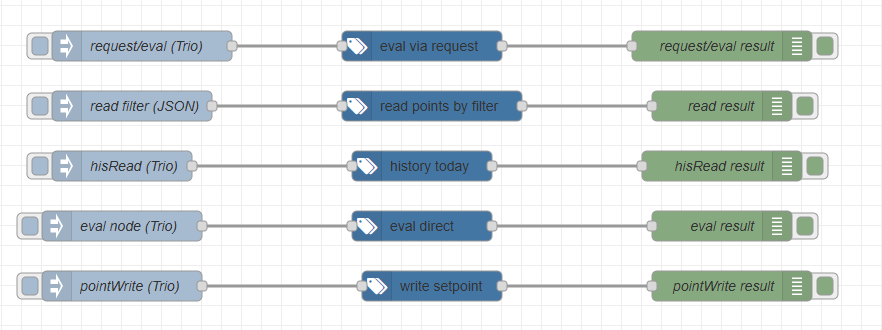

Example Flow

Example flow:

• examples/demo-flow.json

Before using it, replace the placeholder refs with values from your own server:

• @POINT_REF
• @EQUIP_REF
• @WRITABLE_POINT_REF

The example flow does not include usernames or passwords. Configure credentials in the haystack-server config node after import.

Config node

haystack-server stores:

• base URL, for example http://127.0.0.1:8080 or https://haystack.example.com
• project path, for example /api/{projectName}
• username
• password

The runtime authenticates lazily on the first request and caches the returned auth token.

Base URL and Project Path

The server config intentionally separates:

• Base URL: the server root, for example http://127.0.0.1:8080
• Project Path: the Haystack HTTP API path under that server, following the Project Haystack convention /api/{projectName}

For Haxall, the default project is commonly sys, so the usual API path is:

/api/sys

Other Project Haystack servers may expose a different project name or API path, so this value should stay configurable instead of being hard-coded for one platform.

Generic request node

haystack-request accepts values from the editor or from msg:

• msg.haystack.op
• msg.method
• msg.haystack.method
• msg.format
• msg.haystack.format
• msg.outputMode
• msg.haystack.outputMode
• msg.headers
• msg.payload
• msg.rawBody

The node returns:

• msg.payload: response body
• msg.statusCode
• msg.headers

The editor provides a dropdown for common Haystack ops. You can override the configured value with msg.haystack.op. In Auto method mode, eval, hisRead, and pointWrite use POST.

Use the ops operation to inspect which operations your server exposes. Many Haystack servers include additional vendor- or project-specific ops beyond the common Project Haystack set, so Custom... remains important.

One Haystack wire format is selected for the response:

• zinc
• json
• trio

Format references:

• Zinc
• JSON
• Trio

Return modes follow the Node-RED http request pattern:

• a UTF-8 string
• a parsed JSON object

When Return is set to a parsed JSON object, JSON responses are parsed into objects and returned in msg.payload. Zinc and Trio remain UTF-8 strings, with the original text also available as msg.payloadRaw.

Generated request bodies use Zinc by default. The main exception is eval, which can generate JSON request bodies when JSON format is selected.

Default Accept and Content-Type headers are inferred from the selected format. For custom headers, use msg.headers, following the same pattern as the built-in HTTP Request node. For example, if Format is JSON, the node sends application/json; charset=utf-8 and expects application/json unless you explicitly override with msg.headers.

For eval, you can provide either:

• msg.haystack.expr = "readAll(point).limit(5)"
• or msg.payload = "readAll(point).limit(5)"

and the request node will build the Zinc or JSON body automatically unless you explicitly send msg.rawBody.

The preferred dynamic input shape is a nested object such as:

{
  "haystack": {
    "op": "eval",
    "expr": "readAll(point).limit(5)"
  }
}

Flat fields such as msg.id or msg.expr are still accepted as a temporary compatibility fallback where supported, but op selection now uses msg.haystack.op.

Examples:

{
  "haystack": {
    "op": "read",
    "query": {
      "filter": "point and temp"
    }
  }
}

{
  "haystack": {
    "op": "hisRead",
    "id": "@somePointRef",
    "range": "today",
    "format": "trio",
    "outputMode": "string"
  }
}

{
  "haystack": {
    "op": "eval",
    "expr": "readAll(point).limit(5)"
  }
}

{
  "haystack": {
    "op": "read",
    "id": "@someRecordRef",
    "format": "json",
    "outputMode": "object"
  }
}

Convenience nodes

haystack-eval

Accepts:

• msg.haystack.expr
• msg.haystack.format
• msg.haystack.outputMode

Sends a POST to the eval op. msg.haystack.expr is used when the editor field is left empty. haystack-eval supports Zinc, JSON, and Trio response format selection, and it can return JSON as a parsed object.

haystack-read

Accepts either:

• msg.haystack.filter
• msg.haystack.id
• msg.haystack.format
• msg.haystack.outputMode

If msg.haystack.filter is provided it will be sent as a query string. Otherwise msg.haystack.id is sent as a Zinc POST body so the id is typed as a Haystack Ref. You may also configure a default id in the editor. If the editor field is set, it wins; msg.haystack.filter or msg.haystack.id only fill in blank fields. haystack-read supports Zinc, JSON, and Trio response format selection. Generated request bodies still use Zinc unless you explicitly provide msg.rawBody.

Examples:

{
  "haystack": {
    "filter": "point and temp and equipRef==@someEquipRef"
  }
}

{
  "haystack": {
    "id": "@someRecordRef"
  }
}

haystack-hisread

Accepts:

• msg.haystack.id
• msg.haystack.range
• msg.haystack.format
• msg.haystack.outputMode

By default the node sends a single-point hisRead request using query parameters with id as a Ref and range as a Haystack string. If you explicitly provide msg.rawBody, it sends that body as a POST request instead. Editor values win; msg.haystack.id and msg.haystack.range only fill in blank fields. haystack-hisread supports Zinc, JSON, and Trio response format selection.

haystack-point-write

Accepts:

• msg.haystack.id
• msg.haystack.action
• msg.haystack.resultMode
• msg.haystack.format
• msg.haystack.outputMode
• msg.haystack.level
• msg.haystack.value
• msg.haystack.who
• msg.haystack.duration

Sends a Zinc body to the pointWrite op. Supported actions are write, manualAuto, and emergencyAuto. manualAuto clears level 8, and emergencyAuto clears level 1. Supported result modes are array and ack. array returns the updated point write array, and ack returns the raw write acknowledgement. Return modes follow the same pattern as the generic request node:

• a UTF-8 string
• a parsed JSON object

Parsed JSON output requires the server response to actually be JSON. The original write acknowledgement is kept in msg.pointWriteAck. The level selector offers levels 1 through 17, with 1 labeled Emergency, 8 labeled Manual, and 17 labeled Default. Editor values win; msg.haystack.id, msg.haystack.action, msg.haystack.resultMode, msg.haystack.outputMode, msg.haystack.level, msg.haystack.value, msg.haystack.who, and msg.haystack.duration only fill in blank fields. Generated request bodies still use Zinc unless you explicitly provide msg.rawBody.

Compatibility

• tested with multiple Project Haystack servers, including Haxall and SkyFoundry-based platforms
• supports Zinc, JSON, and Trio response formats
• parses JSON responses to objects when Return is set to a parsed JSON object

Behavior

• generated request bodies use Zinc by default
• eval can also generate a JSON request body when JSON format is selected
• msg.rawBody sends a fully custom request body
• use the ops operation to inspect which operations a specific server exposes

Project Haystack References

The official Project Haystack operation docs are useful background for the node behaviors in this package:

• Project Haystack Ops
• Project Haystack HTTP API

The node help and README in this repo paraphrase those docs for practical Node-RED usage. For the exact op definitions, request grids, and response grids, refer back to the official Project Haystack documentation.
