node-red-contrib-c2nred-mqtt 0.1.0
Node Red MQTT broker node based on aedes.js for CLICK C2-NRED module
node-red-contrib-c2nred-mqtt
MQTT Broker for CLICK C2-NRED Node-RED modules based on node-red-contrib-aedes which is based on Aedes.
You can use the MQTT protocol in Node-RED without an external MQTT broker like Mosquitto.
Background
This node was created because the node-red-contrib-aedes MQTT Broker had a dependency of a dependency that did not work for the C2-NRED module [node-red-contrib-aedes] (https://github.com/martin-doyle/node-red-contrib-aedes)
Installation
You can install the node directly within the editor by using the Palette Manager.

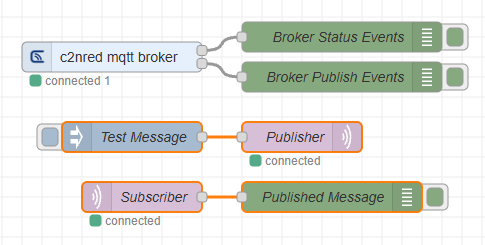

Flows
Just put this node on Node-RED and hit the deploy button. The MQTT Broker will run on your Node-RED instance.
Features
- Works with AutomationDirect.com CLICK C2-NRED module
- Standard TCP Support
- WebSocket Support via port or path
- SSL / TLS
- Message Persistence (In-memory, LevelDB or MongoDB)
For more information see ???.
Server without public IP or behind firewall
If your server is behind a firewall or you cannot open any ports other than the standard http/https ports, the MQTT broker node can be accessible by public clients through a WebSocket path.
When your Node-RED server address is https://yourserver/, you can set the WebSocket to bind to, e.g., "/ws/mqtt" path, to have wss://yourserver/ws/mqtt WebSocket at port 443.
You can also bind the WebSocket to the root "/" path and having wss://yourserver/ WebSocket listening at port 443 (or ws://yourserver/ at port 80).
License
Licensed under MIT.
