node-red-contrib-awtrix-epl-live 0.6.3

awtrix live football

npm install node-red-contrib-awtrix-epl-live

EPL Match Tracker

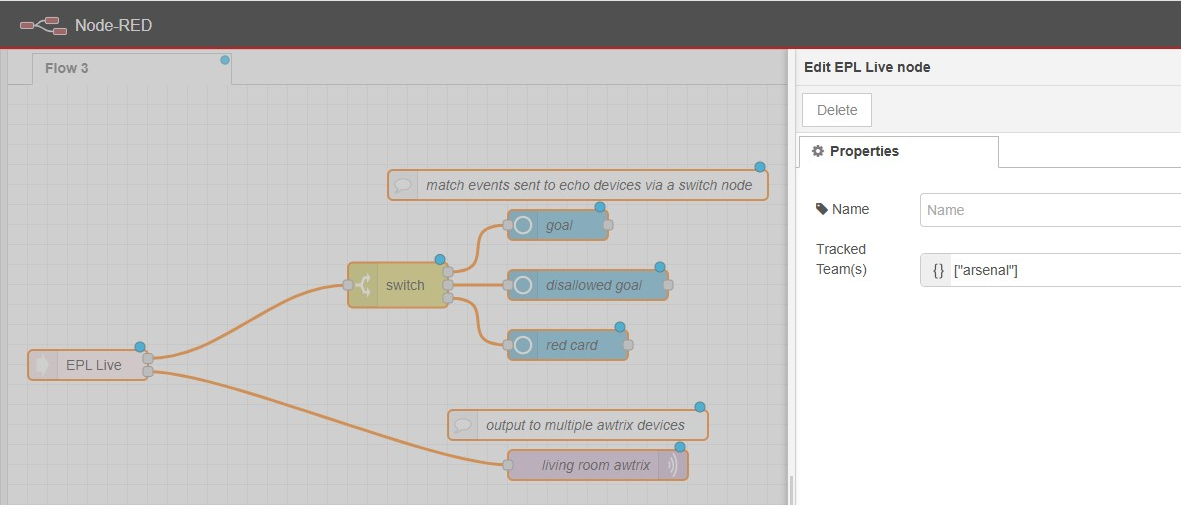

Basic Usage

Dependencies

Pre-load any icons to your Awtrix display(s).

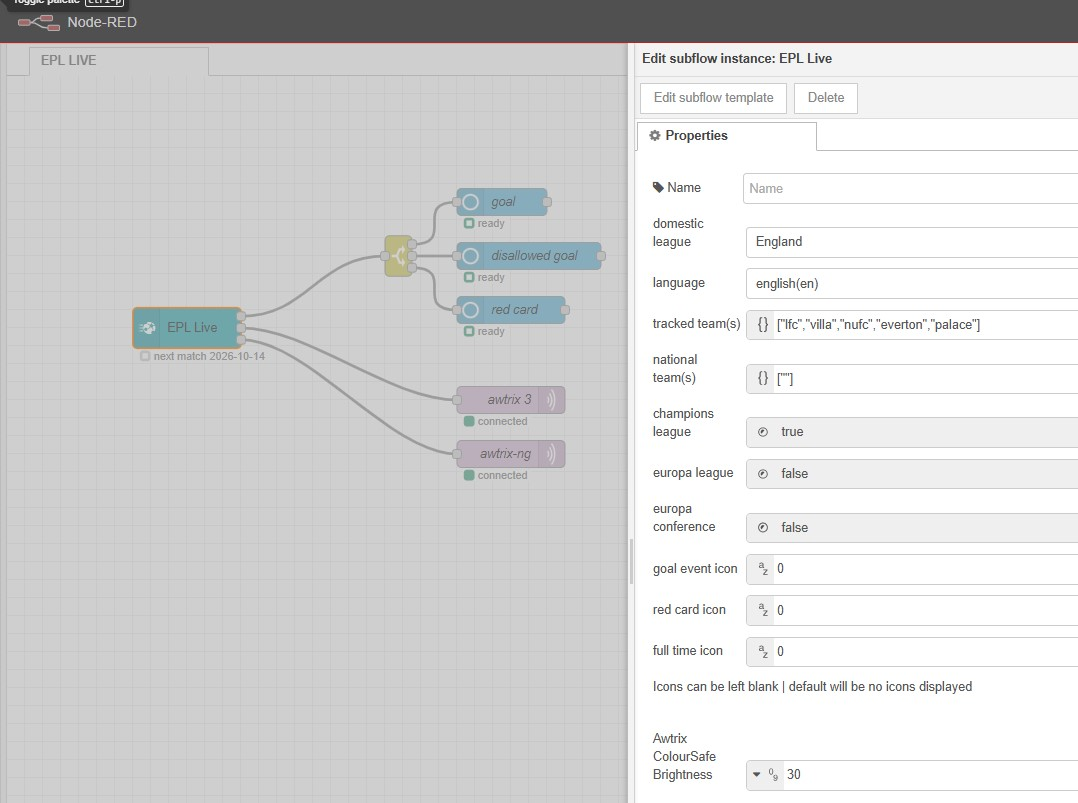

Configuration

Double-click the node and set:

• Country Select England or Germany. This decides which competitions are followed:

  Country	Leagues	Cups
  England	Premier League, Championship	FA Cup, Carabao Cup, Community Shield
  Germany	Bundesliga, 2. Bundesliga	DFB-Pokal, DFL-Supercup

• Tracked teams A JSON array of team names (case-insensitive).

  ["Liverpool", "Manchester City", "Crystal Palace", "Aston Villa"]
  ["Bayern Munich", "Borussia Dortmund", "Eintracht Frankfurt", "Werder Bremen"]

Team names have been relaxed and more common names are also accepted

  ["lfc", "man city", "palace", "villa"]
  ["bayern", "bvb", "frankfurt", "werder"]

Teams can be from either league in your selected country. Native and accented spellings are accepted too, for example "Köln", "Bayern München" or "Mönchengladbach", as are plain versions such as "Koln".

A team from a different country shows a Country mismatch warning. A name that can't be found shows Unable to validate.

• National teams A JSON array of national team names, the same format as Tracked teams. Leave it empty to switch internationals off. Native names are accepted:

  ["England", "Deutschland", "España"]

Tracks the UEFA Nations League, the European Championship and Euro qualifiers.

• Additional competitions
  True / False in the dialog options will include or exclude team tracking for UEFA competitions.

  • Champions League.
  • Europa League.
  • Europa Conference League.

• Language - English or German for AWTRIX messages. If it isn't set, it follows the country.

• Goals icon - icon ID used for goal, penalty goal, own goal, and disallowed goal notifications. 0 (default) no icon.

• Red card icon - icon ID used for red card notifications. 0 (default) no icon.

• Full time icon - icon ID used for full time notifications. 0 (default) no icon.

• Recommended LaMetric Icon Numbers

  Icon ID	Used for
  2965	goal / penalty goal / own goal, disallowed goal & full time
  43844	red card

• Minimum brightness
  Your Awtrix device brightness has a direct effect on how readable certain text colours appear and darker palette colours can be difficult to view on the display.
  The minimum brightness dialogue setting is a 'perceived colour' brightness value used to determine if a team colour will be readable on your Awtrix display.
  All team name colours are evaluated against this value, if they fall below this threshold they fail the test. Primary and alternate colours are tested in order before falling back to '#FFFFFF'.
  The default value for this setting is 30. If you are finding dark text colours difficult to read, increase this number.

Outputs

This node has three outputs, wire your own downstream nodes to these

Output pin #1 - Payload event type, wire to anything you want (eg. Alexa/Google notification)

msg.payload is one of: "goal", "disallowed goal", "red card", or "full time". Penalties and own goals are also reported as "goal" on this output. The distinction between goal events is only reported by pin #2 & pin #3.

Wire a switch node off this output to route each event type to your own desired trigger.

Here is an Alexa Ready audio clip you can use for "GOAL" events to get you started
"<audio src='https://nr-alexa-sounds.s3.eu-west-2.amazonaws.com/goal.mp3'/>"

Output pin #2 - AWTRIX 3 payload

msg.payload is a ready-to-send 2 part AWTRIX 3 notification object set to fire with pin #1 and carries the event plus a followup detail (incl. score, player, team names). Wire this pin straight to one or more mqtt out nodes pointed at your AWTRIX 3 device(s).

Output pin #3 - AWTRIX NG payload

msg.payload The same as pin #2 but formatted for AWTRIX-NG devices.

internally

• Tracked team colours
  Primary & secondary team colours are assessed independently.
  Home team first to determine if the primary colour is deemed too dark or not viable for AWTRIX (see Minimum brightness).
  Away team colours are assessed in the same manner and checked against the home team resolved colour to avoid the two clashing.

• Node Status
  The node will show any upcoming matches for tracked teams only:

  • "nothing upcoming" - none of your tracked teams have any immediate matches.
  • "next match xxxx-xx-xx" - date of the next match from your tracked teams list.
  • "kick off shortly" - a match is about to begin.
  • "live - in play" - match underway and actively polling for live data.

Development & testing

• Championship & 2. Bundesliga - newly added, in testing.
• International matches - in testing.
• La Liga & Serie A - coming soon.
