@pauldeng/node-red-contrib-redis 2.0.0

Redis integration nodes for Node-RED with Cluster, Sentinel, streams, pub/sub, commands, Lua, and Redis Functions.

npm install @pauldeng/node-red-contrib-redis

@pauldeng/node-red-contrib-redis

Redis nodes for Node-RED built on ioredis: standalone connections, Redis Cluster, Sentinel, AWS MemoryDB/ElastiCache-style cluster endpoints, blocking inputs, pub/sub, streams, command coverage, Lua scripts, and Redis client injection into context.

Use this package when a flow needs Redis as an event source, queue, cache, stream, coordination point, or custom command target without dropping into a Function node for every call.

Cloud-style config	Stream consumer groups	Lua scripts & functions

Install

In the Node-RED editor, open Menu > Manage palette > Install, search for @pauldeng/node-red-contrib-redis, and install it.

From the command line, install it in your Node-RED user directory and restart Node-RED:

cd ~/.node-red
npm install @pauldeng/node-red-contrib-redis

Compatibility

Upgrading From 1.4.0

Version 2.0.0 raises the runtime floor to Node-RED 5 and Node.js 22.9, fixes previously silent error paths, and changes some edge-case argument handling. Read CHANGELOG.md before upgrading production flows.

Quickstart

1. Add a redis-config node and choose the connection shape: Single, Cluster, Sentinel, or ConnString from an environment variable.
2. Use Test connection before deploying. JSON-mode passwords are stored in Node-RED encrypted credentials; environment-variable mode keeps secrets in the environment.
3. Add one of the runtime nodes: redis in for subscriptions, blocking queues, and XREADGROUP; redis out for writes such as RPUSH, PUBLISH, XADD, and ZADD; redis cmd for broad Redis and module command coverage; redis lua for atomic Lua scripts; or redis instance to place an ioredis client in flow/global context.
4. Import an example flow from examples/ rather than starting from a blank canvas.

Useful examples:

• redis-set-and-get.json - basic set/get commands.
• redis-list-queue.json - list producer and blocking consumer.
• redis-priority-queue.json - sorted-set priority queue.
• redis-pub-sub.json and redis-psubscribe.json - channels and pattern subscriptions.
• redis-streams.json - XADD with an XREADGROUP consumer.
• redis-lua-script.json - Lua scripting patterns.
• redis-fcall.json - Redis Functions (FCALL) pattern.
• redis-script-function-management.json - FUNCTION/SCRIPT management (LOAD, LIST, STATS, DELETE, EXISTS, FLUSH) via redis-command.

Nodes

Configuration Notes

Standalone

Use the Connection tab for the common case, or JSON like:

{
  "host": "127.0.0.1",
  "port": 6379,
  "db": 0
}

Add username, password, and tls: {} when your Redis server requires ACL auth or TLS. In JSON mode, saved passwords are moved into Node-RED credentials instead of remaining in the exported flow.

Redis Cluster

Cluster mode accepts a startup-node array. Username and password values on startup nodes are also applied to ioredis redisOptions, so discovered cluster nodes authenticate too.

[
  {
    "host": "127.0.0.1",
    "port": 7000,
    "username": "node_red",
    "password": "use-an-environment-secret"
  }
]

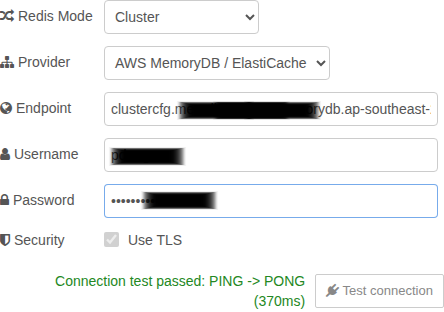

For AWS MemoryDB or ElastiCache cluster configuration endpoints, use the provider in the Connection tab or include dnsLookupStrategy: "identity" in JSON. That enables identity DNS lookup and TLS for the cluster connection.

[
  {
    "host": "clustercfg.example.memorydb.region.amazonaws.com",
    "port": 6379,
    "username": "node_red",
    "password": "use-an-environment-secret",
    "dnsLookupStrategy": "identity"
  }
]

Sentinel

Sentinel mode uses a master name plus Sentinel endpoints:

{
  "name": "mymaster",
  "sentinels": [
    {
      "host": "127.0.0.1",
      "port": 26379
    }
  ],
  "username": "node_red",
  "password": "use-an-environment-secret"
}

If the Sentinel nodes themselves require auth or TLS, use sentinelUsername, sentinelPassword, and sentinelTLS.

Environment Variables

Choose ConnString > Environment variable and enter the variable name. The value can be an ioredis connection string, standalone JSON object, cluster startup-node array, or Sentinel JSON object.

export NODE_RED_REDIS_OPTIONS='{"host":"127.0.0.1","port":6379}'

Environment-variable mode is useful for deployments because secrets stay outside flows.json and outside exported flow snippets.

Prefer JSON object options or encrypted credentials for passwords. Passwords in Redis connection URLs are redacted from connection-test diagnostics, but object-form passwords are easier to audit and migrate.

Message Patterns

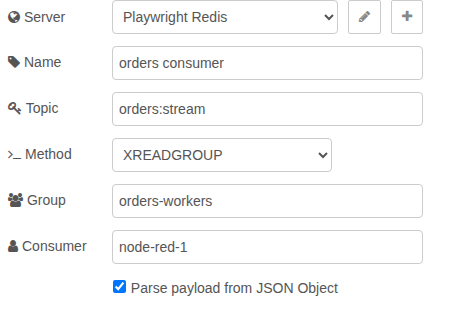

redis-in emits Redis data as Node-RED messages. Pub/sub messages use msg.topic and msg.payload; pattern subscriptions also include msg.pattern; stream consumer groups include msg.stream, msg.messageId, and msg.payload.

redis-out and redis-command let incoming messages override configured keys and arguments. Use Catch nodes around write-heavy flows; Redis command failures are surfaced through Node-RED's normal error path instead of being swallowed.

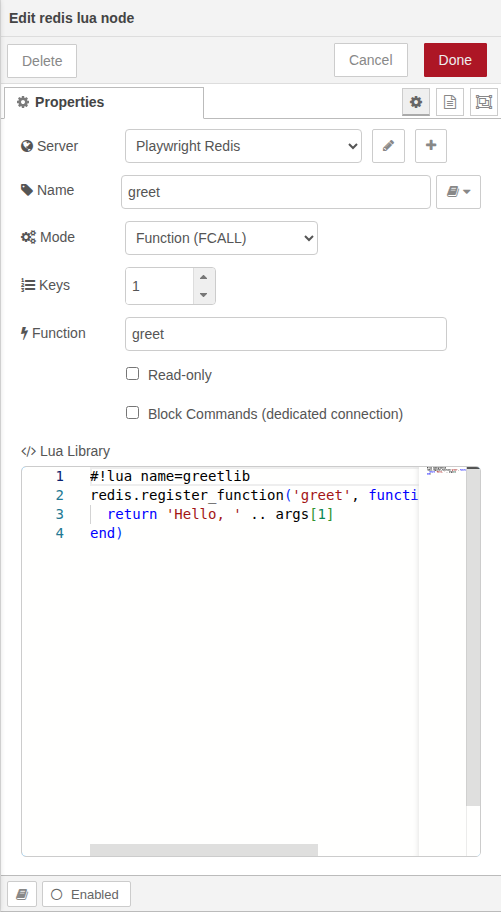

For advanced commands or Redis modules, prefer redis-command before writing a Function node. redis-lua-script executes Lua scripts and Redis Functions, while FUNCTION * and SCRIPT * management subcommands run through redis-command. For custom client code that really needs ioredis directly, use redis-instance.

Development And Tests

Install dependencies:

npm install

Run the browser editor suite:

npm run test:playwright

Run the full Docker-managed deployment matrix:

npm test

The test matrix covers standalone no-auth/auth Redis, Redis Cluster, Redis Sentinel, and optional AWS MemoryDB when MEMORYDB_ENABLED=1 plus endpoint credentials are present in the environment. See docs/TESTING.md for the Docker boundary and docs/NODE_GUIDE.md plus docs/ARCHITECTURE.md for implementation details.

License

MIT
