@kazuhitoyokoi/node-red-contrib-patlite 0.0.5

Node-RED node for patlite

npm install @kazuhitoyokoi/node-red-contrib-patlite

@kazuhitoyokoi/node-red-contrib-patlite

A node to control Patlite NHV series

Install

Run the following command in your Node-RED user directory - typically ~/.node-red

    npm install @kazuhitoyokoi/node-red-contrib-patlite

After setting the IP address and target (light color or buzzer) in the node property, you can control this node with the msg.payload value.

Input

• msg.payload boolean

  If the received msg.payload is true, the target light will be on. When msg.payload has false value, the target light is turned off.

• msg.topic number

  You can set the light or buzzer mode in the msg.topic. The range of the value is between 1 and 5.

Demonstrations

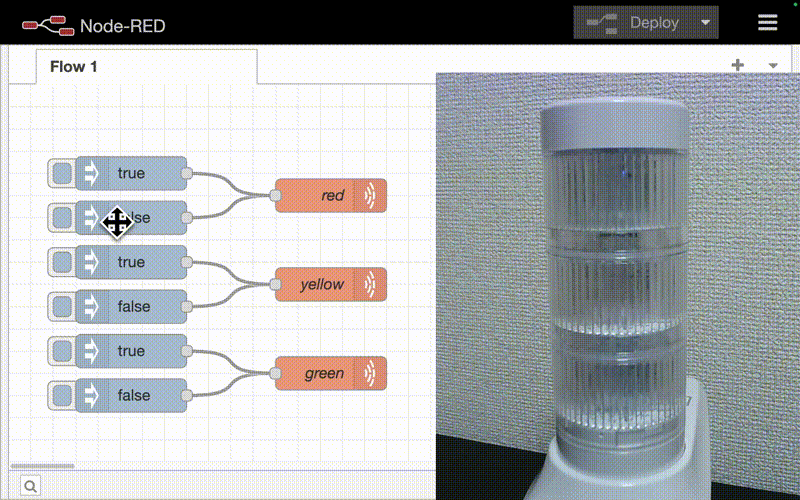

• Simple flow demonstration

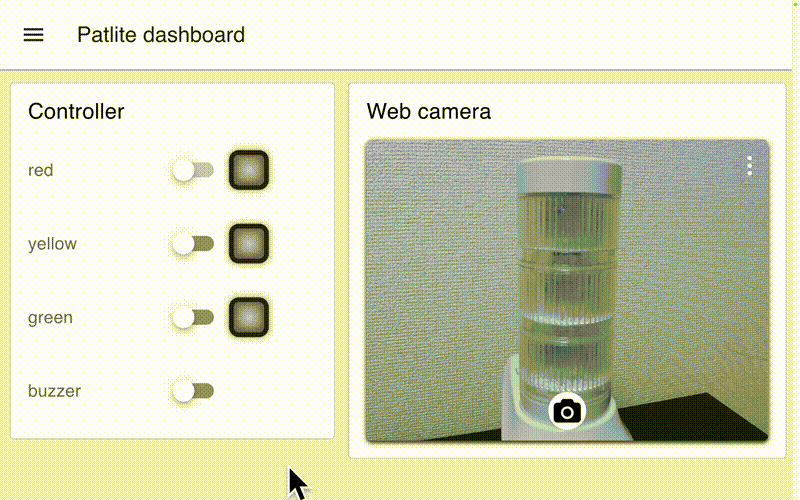

• Dashboard integration



Settings

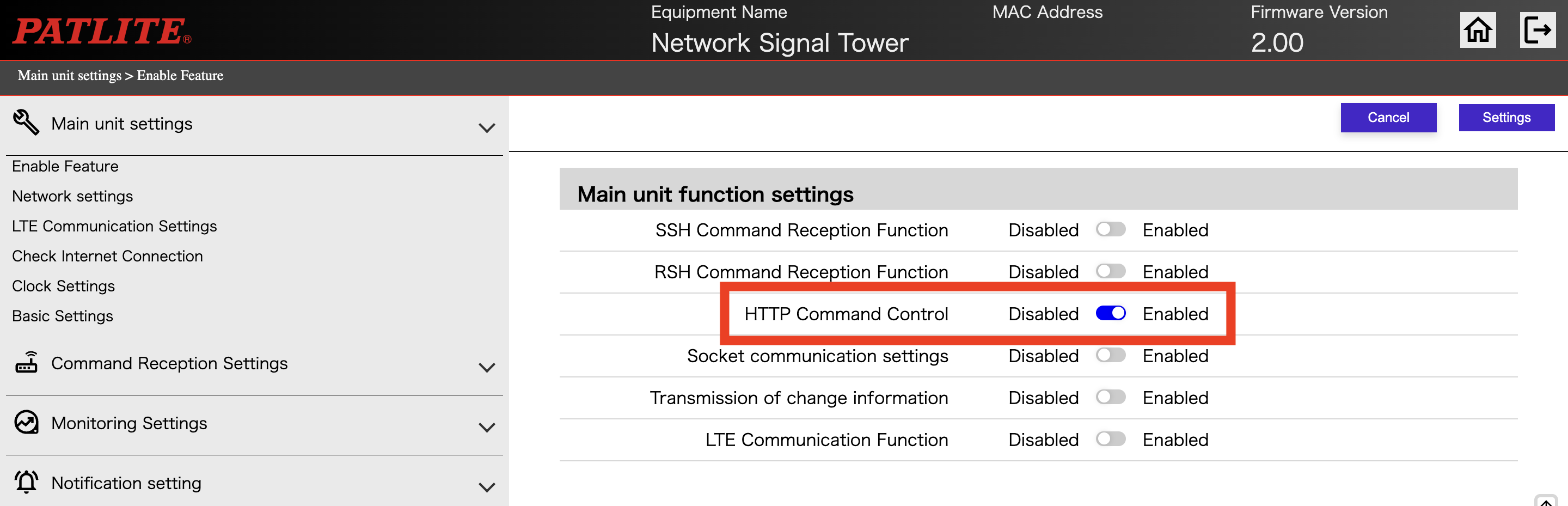

To allow this node to access the HTTP server on your Patlite device, you need to enable the HTTP Command Control in advance.
