@foorschtbar/node-red-contrib-hailo-libero 1.2.0
Node-RED node for Hailo Libero 3.0 hand free trash bin opener
node-red-contrib-hailo-libero
Node-RED node for Hailo Libero 3.0 hand free trash bin opener for smart home automation.
This package provides Node-RED node to interact with the Hailo Libero 3.0, implementing the session-based HTTP API with auto re-login.
Installation
Standard installation via Node-RED's palette manager or using npm:
npm install @foorschtbar/node-red-contrib-hailo-libero
Usage
After installation, you will find a new node in the Node-RED palette under the category "Hailo". You can use this node to send commands to your Hailo Libero 3.0 device.
Nodes
- Hailo Libero Command: Send commands to the Hailo Libero 3.0 device.
Commands Supported
| msg.cmd | msg.payload | Description |
|---|---|---|
| push | N/A | Opens the trash bin lid. |
| restart | N/A | Restarts the Hailo Libero device. |
| settings | {'led':2} |
Reconfigures the device settings. Send as JSON. For example, adjusts the LED brightness. Other available options are pwr for power and dist for the ejection force and detection range. |
Configuration
In the command node, you need to configure the device with the following parameters:
- Host: The IP address or hostname of your Hailo Libero 3.0 device.
- Port: The port number for your Hailo Libero 3.0 device. Default is
81. - PIN: The PIN for authentication. Default is
hailo.

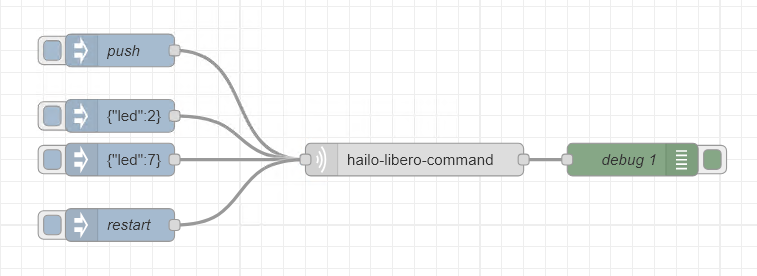

Example Flow
[
{
"id": "3e8fa81acf708d83",
"type": "hailo-libero-command",
"z": "0114517e3e5588f5",
"device": "e41f6e86a9a11551",
"name": "",
"x": 600,
"y": 380,
"wires": [
[
"25a580fb6da8421f"
]
]
},
{
"id": "a506d85dc25a34f7",
"type": "inject",
"z": "0114517e3e5588f5",
"name": "push",
"props": [
{
"p": "cmd",
"v": "push",
"vt": "str"
}
],
"repeat": "",
"crontab": "",
"once": false,
"onceDelay": 0.1,
"topic": "",
"x": 330,
"y": 280,
"wires": [
[
"3e8fa81acf708d83"
]
]
},
{
"id": "25a580fb6da8421f",
"type": "debug",
"z": "0114517e3e5588f5",
"name": "debug 1",
"active": true,
"tosidebar": true,
"console": false,
"tostatus": false,
"complete": "true",
"targetType": "full",
"statusVal": "",
"statusType": "auto",
"x": 800,
"y": 380,
"wires": []
},
{
"id": "f8a31eeec193c2b9",
"type": "inject",
"z": "0114517e3e5588f5",
"name": "",
"props": [
{
"p": "payload"
},
{
"p": "cmd",
"v": "settings",
"vt": "str"
}
],
"repeat": "",
"crontab": "",
"once": false,
"onceDelay": 0.1,
"topic": "",
"payload": "{\"led\":2}",
"payloadType": "json",
"x": 330,
"y": 340,
"wires": [
[
"3e8fa81acf708d83"
]
]
},
{
"id": "db6e84f78ec11f9d",
"type": "inject",
"z": "0114517e3e5588f5",
"name": "",
"props": [
{
"p": "payload"
},
{
"p": "cmd",
"v": "settings",
"vt": "str"
}
],
"repeat": "",
"crontab": "",
"once": false,
"onceDelay": 0.1,
"topic": "",
"payload": "{\"led\":7}",
"payloadType": "json",
"x": 330,
"y": 380,
"wires": [
[
"3e8fa81acf708d83"
]
]
},
{
"id": "05e5f67a5fc17410",
"type": "inject",
"z": "0114517e3e5588f5",
"name": "restart",
"props": [
{
"p": "cmd",
"v": "restart",
"vt": "str"
}
],
"repeat": "",
"crontab": "",
"once": false,
"onceDelay": 0.1,
"topic": "",
"x": 330,
"y": 440,
"wires": [
[
"3e8fa81acf708d83"
]
]
},
{
"id": "e41f6e86a9a11551",
"type": "hailo-libero-device",
"host": "192.168.0.1",
"port": "81",
"protocol": "http",
"debug": false
},
{
"id": "4fb5fa1e9007224a",
"type": "global-config",
"env": [],
"modules": {
"node-red-contrib-hailo-libero": "1.0.0"
}
}
]
