@bannsaenger/node-red-contrib-artnet-controller 0.2.0

Node-RED node that controls lights via Art-Net. Acts as a Art-Net controller.

npm install @bannsaenger/node-red-contrib-artnet-controller

This is a complete solution for sending and receiving dmx-data via Art-Net without the need of additional hardware

Credits

Art-Net™ is a trademark of Artistic Licence Engineering Ltd.

This work is basend on the node-red-contrib-artnet nodes developed by Gunnebo

The Art-Net library is taken from margau/dmxnet

Added the features introduced by node-red-contrib-artnet-plus by Hayden Donald

Main changes to the previous work

• Basically it is fully compatible to the payload format defined by gunnebo
• More than one universe can now be served
• Transitions got more attributes and features
• This module is fully functional without any additional hardware
• The sending is completely rewritten, so that you can't flood the artnet
• The transition engine is rewritten, so that only one interval timer with the required resolution is doing the transition handling.

Install

Run the following command in the root directory of your Node-RED installation. Usually this is ~/.node-red

npm install @bannsaenger/node-red-contrib-artnet-controller

Or even from inside Node-RED with the palette manager.

Using

Sending DMX-Data

First you must specify a Art-Net controller configuration node. The controller is bound to one or all IP addresses found on the system and handles the Art-Net polling and shows up as an Art-Net node in the network.

For sending data there must be a Art-Net Sender configuration node. This node holds one universe of dmx-data and handles the sending of this universe to the network.

To get dmx-data out to the network, use the Art-Net Out node. This is basically connected to an Art-Net Sender node. If you pass a msg object without additional addressing, the dmx values are sent to the Art-Net Sender specified in the Art-Net Out node.

If you pass additional addressing information, the Art-Net Out node tries to find a sender with the given address information. If none is found the configured Art-Net Sender instance is taken.

msg.payload = {
  "net": 0,
  "subnet": 0,
  "universe": 1
};

• net - int: net in [0, 127]
• subnet - int: subnet in [0, 15]
• universe - int: universe in [0, 15]

Receiving DMX-Data

With the Art-Net In node you can receive dmx values. Each Art-Net In node must be bound to a existing Art-Net controller configuration node.

You must specify a net, subnet and universe. Then the data can be received in form of buckets as described in Payload format later in this document or as a Uint8Array with the values of the whole universe.

Payload format

You can either set a single channel like the following example:

msg.payload = {
  "channel": 1,
  "value": 255
};

• channel - int: address in [1, 512]
• value - int: value in [0, 255]

Or you can set multiple channels at once:

msg.payload = {
  "buckets": [
    {"channel": 1, "value": 255},
    {"channel": 4, "value": 0}
  ]
};

The buckets can take another parameter to set more than one channel value at once.

• fill - int: repeat this value until this channel [2, 512]

The fill must be larger than channel

Example:

msg.payload = {
  "buckets": [
    {"channel": 1, "value": 255, "fill": 100},
    {"channel": 101, "value": 11, "fill": 200}
  ]
};

Will set channel 1 to 100 with the value 255 and channel 101 to 200 with the value 11

Also by setting the payload to an array of numbers or a UInt8Array for consistency with Art-Net In. Values will be assigned consecutively according to the array starting with channel 1.

msg.payload = [0, 1, 2];
msg.payload = new UInt8Array([0, 1, 2]);

You can also fade to values, either for a single channel or multiple channels. You should specify the transition, a duration in milliseconds and optionally a number of repetitions.

If mirror is defined the transition will be mirrored after the optional hold value.

The value of -1 for repeat forces the the transition to run infinitely until a value or other transition is sent to this channel.

If repetition is defined, then a gap between repetitions can also be defined.

The transition ends with the target value, holds while gap and starts again with the value before the transition.

msg.payload = {
    "id": "myTransition",
    "transition": "linear",
    "duration": 5000,
    "repeat": 1,
    "mirror": false,
    "hold": 0,
    "gap": 1000,
    "buckets": [
      {"channel": 1, "value": 255},
      {"channel": 4, "value": 0}
    ]
}

• id - string: user defined id to identify the transition when output is defined
• transition - string: the type or form of the transition to go [linear, gamma, quadratic, sine]
• gamma - int: value in [0 - 10] default = 2.2. Only for gamma transition
• duration - int: value [-1 - MAX_SAFE_INTEGER] (in ms)
• hold - int: value in [0 - MAX_SAFE_INTEGER], time between transition and mirrored part (in ms)
• mirror - bool: [true/false], if true the transition is mirrored
• gap - int: value in [0 - MAX_SAFE_INTEGER], gap between transitions (in ms)
• repeat - int: value in [-1 - MAX_SAFE_INTEGER], number of repetitions. -1 = repeat infinitely till transition is canceled
• channel - int: address in [1 - 512]
• value - int: value in [0 - 255] alternatively
• buckets - array

Optional you can define start values. These will not be sent immediately. They can also be specified in the transition payload as well.

msg.payload = {
    "start_buckets": [
        {"channel": 1, "value": 255},
        {"channel": 4, "value": 123},
    ]
};

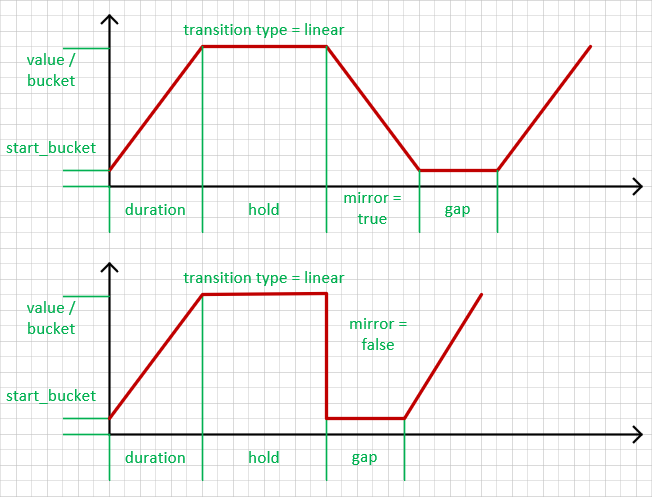

Timing example:

In order to perform an arc transition (movement by arc) you must specify more details:

msg.payload = {
    "transition": "arc",
    "duration": 2000,
    "arc": {
        "pan_channel": 1,
        "tilt_channel": 3,
        "pan_angle": 540,
        "tilt_angle": 255
    },
    "start": {"pan": 0, "tilt": 44},
    "center": {"pan": 127.5, "tilt": 63.75},
    "end": {"pan": 85, "tilt": 44}
};

where

• arc - channels that should be involved in the arc transition (pan and tilt channels)
• start - channel's initial values (start point), by default, current channel's values
• center - "center point" values
• end - channel's final values (end point)

In the example above, the moving head will move by arc starting from {pan: 0, tilt: 44} to {pan: 85, tilt: 44}. Center point ({pan: 127.5, tilt: 63.75}) defines nominal circle center.

The 'repeat' value can also be added in this transition.

Attention using the arc feature

This "arc" feature behaves exact like the original module. But the description does not meet reality. The start, center and end points are not realy channel values.

Must be revised.

Changelog

0.2.0

• (Bannsaenger) added possibility to send feedback messages on transition states
• (Bannsaenger) refactor main timer to state machine for handling of mirror and gap
• (Bannsaenger) refactor TransitionFactory to compute single values per step while the mainWorker runs
• (Bannsaenger) added sine transition
• (Bannsaenger) moved to own fork from dmxnet (@bannsaenger/dmxnet) to have the new error handling
• (Bannsaneger) added possibility to set more than one cannel value at once. See parameter fill

0.1.5

• (szekelyisz) added support for msg.payload as array to Art-Net Out

0.1.4

• (Bannsaenger) added user defined error handler for dmxnet library. Works with dmxnet > 0.9.0. With versions prior to 0.9.0 the behaviour is like before
• (Bannsaenger) fixed the transfer of parameter port number to the dmxnet library
• (ServiusHack) fix validation function to use actual data
• (honza-kasik) added gamma and quadratic curve transitions

0.1.3

• (Bannsaenger) go back the original dmxnet dependency
• (JonnyTech) fixed typos in README.md

0.1.2

• (Bannsaenger) fix transition handling, more steps than values produces now a even timed transition with sometimes the same value in more than one step
• (Bannsaenger) fix start transition even if maxRate = 0

0.1.1

• (Bannsaenger) fix help for esta homepage

0.1.0

• (Bannsaenger) fixed some TypedInput issues
• (Bannsaenger) added ESTA type code to the "Art-Net Controller" and clarified OEM-code descriptions. OEM-code does not include the manufacturer code.

0.0.1

• (Bannsaenger) initial release
