@ayali/node-red-contrib-jev 1.0.6

Simple Node RED integration to TypeSafe AI's runtime Jev model

npm install @ayali/node-red-contrib-jev

@ayali/node-red-contrib-jev

Simple Node-RED integration to TypeSafe AI's runtime Jev model.

Jev is a System One model: it does not generate text. You give it a state and a list of named questions, and it returns one typed answer per question with probabilities attached. Answers come back in tens of milliseconds for a fraction of the cost of an LLM call, which makes it practical to ask a question of every event in a flow rather than only the interesting ones.

Every question in a request is evaluated in parallel against the same state, so asking five costs barely more than asking one.

Contents

• Install
• Quick start
• Nodes
• Questions
• Outputs
• Examples
• Dynamic questions
• Errors and status

Install

From Manage palette → Install, search for jev. Or from the command line:

cd ~/.node-red
npm install @ayali/node-red-contrib-jev

Docker, where /data is the user directory:

docker exec -w /data <container> npm install @ayali/node-red-contrib-jev
docker restart <container>

Requires Node.js 18 or later (the node uses the built-in fetch) and Node-RED 3.1+. You will need an API key from TypeSafe.

Quick start

1. Drag a jev node onto the canvas and open it.
2. Beside Server, click the pencil and add your API key. The key is stored as a Node-RED credential, so it stays out of your flow exports.
3. Leave State as msg.payload.
4. In Questions, name the first row urgent, leave the type as yes / no, and write an instruction: Does this message need attention today?
5. Wire an inject node with some string payload into it, and a debug node set to complete msg object on the output.
6. Deploy and inject. msg.answers.urgent.noul is a probability between 0 and 1.

Nodes

jev-config holds the endpoint, the model name and the API key. Point Base URL at a gateway (LiteLLM, Vercel AI Gateway, Opper) if you proxy model traffic; the node appends /v1/systemone.

jev evaluates a state against the questions you define, with either one output carrying every answer or one output per question.

Questions

Questions are edited as a list in the node's dialog — one row each, with a name, a type, an instruction, and the criteria fields for that type. The name is the key the answer comes back under.

Criteria are optional on a yes/no question but worth writing — they are the cheapest accuracy you will buy. A choice option with no description is sent as null, which is fine when the name says enough.

Problems the API would reject — an empty instruction, a choice with no options, a score with fewer than two levels — are caught at deploy time and shown on the node status rather than costing a request.

Outputs

One output sets two properties:

msg.jev     = { model: "jev-latest",
                usage: { input_tokens: 312, output_tokens: 48 },
                latency_ms: 180 }

msg.answers = { needs_action: { type: "noul", noul: 0.93 },
                category:     { type: "choice",
                                choice: "schedule",
                                probabilities: { schedule: 0.88, logistics: 0.07,
                                                 social: 0.03, urgent: 0.02 },
                                confidence: 0.85 } }

One output per question emits a copy of the message on each output, in the order the questions are listed, and sets three:

msg.jev      = { model, usage, latency_ms }
msg.question = "needs_action"
msg.answer   = { type: "noul", noul: 0.93 }

There is no answers map on the branches, so a branch cannot read another question's result by accident. All four property names are configurable in the dialog if they collide with something else in your flows.

The node deliberately does not apply thresholds itself. Put a Switch node on each branch to turn a probability into a decision, so every decision boundary stays visible on the canvas rather than buried in an edit dialog.

Examples

Two worked flows ship with the node, under Import → Examples → @ayali/node-red-contrib-jev. Each one runs from an inject node carrying a sample payload, so both can be deployed and run as they are once a key is set on the config node.

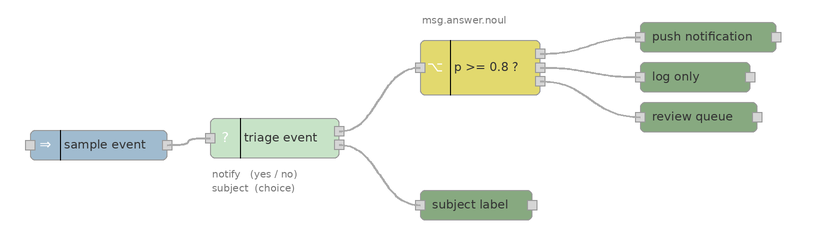

Camera event triage

A security camera event — the camera, what was detected, the zone, the time, whether anything similar fired recently — is evaluated by two questions in a single request, each answer arriving on its own output.

The first question is a yes/no: is this worth interrupting someone for. Its branch feeds a Switch node that splits on a confidence band rather than a single cutoff — at or above 0.8 a notification is warranted, at or below 0.2 it is routine, and the middle goes to a third branch instead of being forced either way. The second question is a choice that labels what triggered the event, and is handled independently.

It shows the shape most flows end up with: one question that drives an action, another that adds context, and the threshold living in a Switch node on the canvas where it can be seen and changed.

[{"id":"jevex1tab","type":"tab","label":"Jev \u2014 Frigate triage","disabled":false,"info":"Evaluates a camera event with two questions in one request, and gives each answer its own output.\n\nThe yes/no answer feeds a Switch node that splits on a confidence band rather than a single cutoff, so an uncertain answer lands on its own branch instead of being forced either way."},{"id":"jevex1cfg","type":"jev-config","name":"TypeSafe","baseUrl":"https://api.typesafe.ai","model":"jev-latest"},{"id":"jevex1inject","type":"inject","z":"jevex1tab","name":"sample event","props":[{"p":"payload"}],"repeat":"","crontab":"","once":false,"topic":"","payload":"{\"camera\":\"front_gate\",\"label\":\"person\",\"score\":0.81,\"zones\":[\"driveway\"],\"local_time\":\"02:14\",\"stationary\":false,\"recent_similar_events\":0}","payloadType":"json","x":150,"y":140,"wires":[["jevex1jev"]]},{"id":"jevex1jev","type":"jev","z":"jevex1tab","name":"triage event","server":"jevex1cfg","mode":"split","state":"payload","stateType":"msg","questions":[{"key":"notify","type":"noul","instructions":"Should this camera event interrupt someone in the house right now?","trueDesc":"A person or vehicle somewhere or at a time that warrants attention, e.g. an unrecognised person at the gate at night","falseDesc":"Routine or expected: a known car in the driveway, an animal, foliage or rain, a repeat of an event already seen"},{"key":"subject","type":"choice","instructions":"What triggered this event?","options":[{"name":"person","desc":""},{"name":"vehicle","desc":""},{"name":"animal","desc":""},{"name":"other","desc":"Foliage, shadows, rain, or an unclear detection"}]}],"timeout":15000,"retries":2,"outputs":2,"x":350,"y":140,"wires":[["jevex1sw"],["jevex1subject"]],"metadataProp":"jev","questionProp":"question","answerProp":"answer","responseProp":"answers"},{"id":"jevex1sw","type":"switch","z":"jevex1tab","name":"p >= 0.8 ?","property":"answer.noul","propertyType":"msg","rules":[{"t":"gte","v":"0.8","vt":"num"},{"t":"lte","v":"0.2","vt":"num"},{"t":"else"}],"checkall":"false","outputs":3,"x":540,"y":100,"wires":[["jevex1push"],["jevex1log"],["jevex1review"]]},{"id":"jevex1push","type":"debug","z":"jevex1tab","name":"push notification","active":true,"complete":"answer","targetType":"msg","x":760,"y":60,"wires":[]},{"id":"jevex1log","type":"debug","z":"jevex1tab","name":"log only","active":true,"complete":"answer","targetType":"msg","x":740,"y":100,"wires":[]},{"id":"jevex1review","type":"debug","z":"jevex1tab","name":"uncertain \u2192 review","active":true,"complete":"answer","targetType":"msg","x":770,"y":140,"wires":[]},{"id":"jevex1subject","type":"debug","z":"jevex1tab","name":"subject label","active":true,"complete":"answer","targetType":"msg","x":560,"y":200,"wires":[]}]

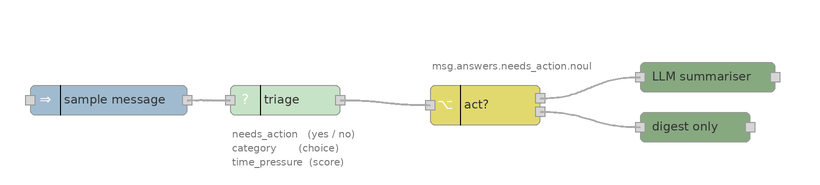

Prefilter in front of a larger model

An inbound message is triaged by three questions of different types at once — a yes/no for whether it needs action, a choice for what it is about, and a score for how soon. All three answers come back together on msg.answers, and a Switch node reads one of them to decide whether the message is worth passing to a more expensive model.

This is the cascade pattern: a cheap, calibrated pass runs on everything, and only the minority that need prose reach a model that charges like one. It also shows the value of asking several questions in one request — the extra two cost almost nothing, and the labels they produce are useful further down the flow.

[{"id":"jevex2tab","type":"tab","label":"Jev \u2014 LLM prefilter","disabled":false,"info":"Triages a message with three questions of different types in a single request.\n\nAll the answers arrive together on msg.answers, and a Switch node reads one of them to decide whether the message is worth passing to a more expensive model."},{"id":"jevex2cfg","type":"jev-config","name":"TypeSafe","baseUrl":"https://api.typesafe.ai","model":"jev-latest"},{"id":"jevex2inject","type":"inject","z":"jevex2tab","name":"sample message","props":[{"p":"payload"}],"repeat":"","crontab":"","once":false,"topic":"","payload":"Reminder: tomorrow is a short day, pickup at 12:30 instead of 14:00. Please send a note if someone else is collecting.","payloadType":"str","x":160,"y":120,"wires":[["jevex2jev"]]},{"id":"jevex2jev","type":"jev","z":"jevex2tab","name":"triage","server":"jevex2cfg","mode":"single","state":"payload","stateType":"msg","questions":[{"key":"needs_action","type":"noul","instructions":"Does this message require a parent to do something?","trueDesc":"Asks for a reply, a signature, money, an item to bring, or a change to pickup or schedule","falseDesc":"Social chatter, thanks, photos, or information needing no response"},{"key":"category","type":"choice","instructions":"What is this message about?","options":[{"name":"schedule","desc":"Times, dates, pickup, cancellations"},{"name":"logistics","desc":"Items to bring, forms, payments"},{"name":"social","desc":"Chatter, congratulations, photos"},{"name":"urgent","desc":"Safety, illness, or something happening today"}]},{"key":"time_pressure","type":"score","instructions":"How soon must this be acted on?","levels":["Whenever","This week","Today"]}],"timeout":15000,"retries":2,"outputs":1,"x":350,"y":120,"wires":[["jevex2switch"]],"metadataProp":"jev","questionProp":"question","answerProp":"answer","responseProp":"answers"},{"id":"jevex2switch","type":"switch","z":"jevex2tab","name":"act?","property":"answers.needs_action.noul","propertyType":"msg","rules":[{"t":"gte","v":"0.6","vt":"num"},{"t":"else"}],"checkall":"false","outputs":2,"x":510,"y":120,"wires":[["jevex2llm"],["jevex2drop"]]},{"id":"jevex2llm","type":"debug","z":"jevex2tab","name":"\u2192 LLM summariser","active":true,"complete":"true","targetType":"msg","x":710,"y":90,"wires":[]},{"id":"jevex2drop","type":"debug","z":"jevex2tab","name":"\u2192 digest only","active":true,"complete":"true","targetType":"msg","x":700,"y":150,"wires":[]}]

Dynamic questions

msg.questions overrides the configured list, and msg.model overrides the configured model. The override takes the API's own shape — an object keyed by question name:

msg.questions = {
  urgent: {
    type: "noul",
    instructions: "Does this need attention today?",
    criteria: { "true": "...", "false": "..." }
  }
};

This lets you build criteria upstream in a Change node with JSONata and keep the jev node generic. In one-output-per-question mode the outputs stay bound to the configured question names, so an override can rephrase a question but cannot add an output.

Errors and status

Failures are raised to the node and can be handled with a Catch node. HTTP 429 and 529 responses are retried with exponential backoff, honouring Retry-After when the API sends one; Timeout and Retries are configurable in the dialog.

The node status shows the answers and the round-trip time after a successful call, and the first problem otherwise.

Links

• TypeSafe API reference
• Issues

License

MIT
