WAGO Power Measurement - Modbus TCP
Node-RED_Modbus-PowerMeasurementModule
Simple flow to test a Modbus Connection to a WAGO 750-495 Power Measurement Module
Hardware Configuration
- WAGO 750-362 Modbus TCP Coupler
- WAGO 750-602 Power Module
- WAGO 750-509 Digital Outputs
- WAGO 750-495 3 Phase Power Module
- WAGO 750-600
Note:

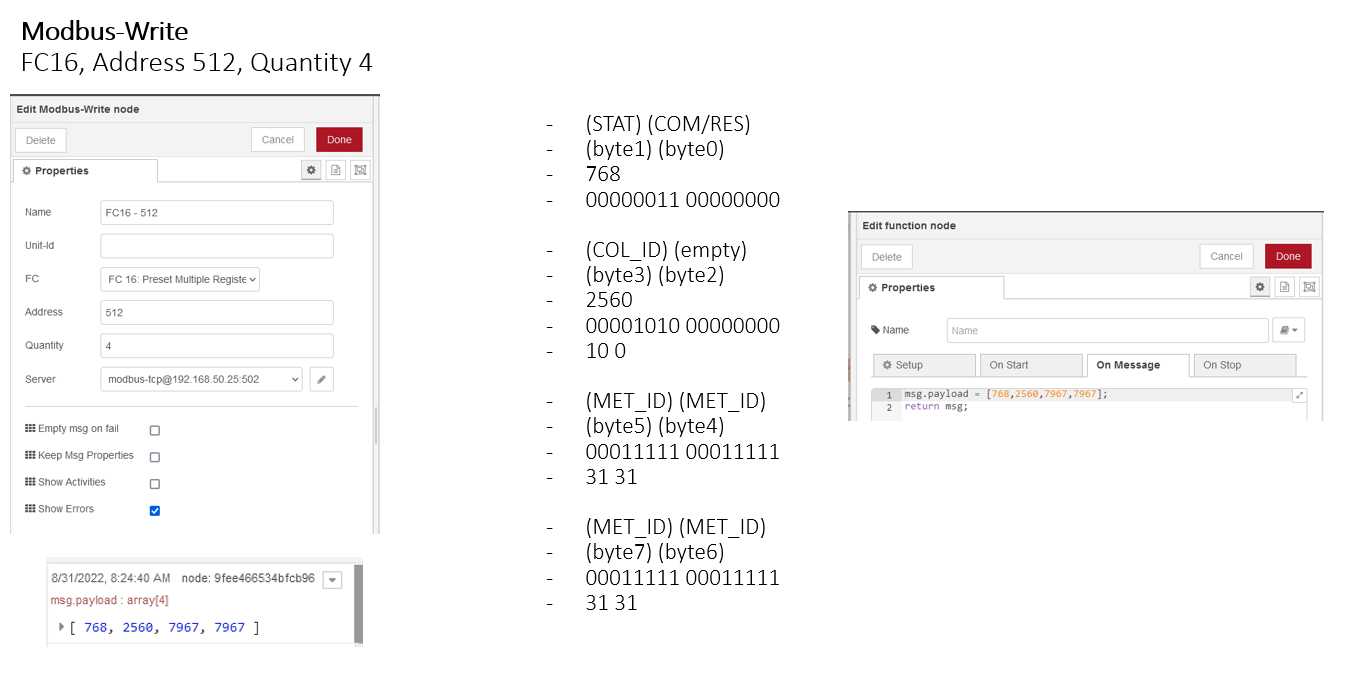

- This example uses the same MET_ID for all data, but this can be configured to read different values. Refer to 3 Phase Power Measurement manual for more MET_ID's.
[{"id":"831fc420f4ebbd11","type":"tab","label":"Modbus - Power Measurment","disabled":false,"info":"","env":[]},{"id":"11fa2e0c8cea2bf0","type":"modbus-read","z":"831fc420f4ebbd11","name":"FC3 - 524","topic":"","showStatusActivities":false,"logIOActivities":false,"showErrors":false,"unitid":"","dataType":"HoldingRegister","adr":"524","quantity":"1","rate":"5","rateUnit":"h","delayOnStart":false,"startDelayTime":"","server":"22686392499a3421","useIOFile":false,"ioFile":"","useIOForPayload":false,"emptyMsgOnFail":false,"x":400,"y":360,"wires":[["7e09bfc735b8167d"],["c20944b3019b4a90"]]},{"id":"7e09bfc735b8167d","type":"debug","z":"831fc420f4ebbd11","name":"","active":false,"tosidebar":true,"console":false,"tostatus":false,"complete":"false","statusVal":"","statusType":"auto","x":630,"y":340,"wires":[]},{"id":"c20944b3019b4a90","type":"debug","z":"831fc420f4ebbd11","name":"","active":false,"tosidebar":true,"console":false,"tostatus":false,"complete":"false","statusVal":"","statusType":"auto","x":630,"y":380,"wires":[]},{"id":"38bf77e965697e53","type":"modbus-read","z":"831fc420f4ebbd11","name":"FC1 - 512","topic":"","showStatusActivities":false,"logIOActivities":false,"showErrors":false,"unitid":"","dataType":"Coil","adr":"512","quantity":"2","rate":"5","rateUnit":"h","delayOnStart":false,"startDelayTime":"","server":"22686392499a3421","useIOFile":false,"ioFile":"","useIOForPayload":false,"emptyMsgOnFail":false,"x":400,"y":260,"wires":[["38816e0e6d1b12d3"],["46dd63ea7f322261"]]},{"id":"38816e0e6d1b12d3","type":"debug","z":"831fc420f4ebbd11","name":"","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"false","statusVal":"","statusType":"auto","x":630,"y":240,"wires":[]},{"id":"46dd63ea7f322261","type":"debug","z":"831fc420f4ebbd11","name":"","active":false,"tosidebar":true,"console":false,"tostatus":false,"complete":"false","statusVal":"","statusType":"auto","x":630,"y":280,"wires":[]},{"id":"2f63c8fea707c9d0","type":"modbus-write","z":"831fc420f4ebbd11","name":"FC15 - 512","showStatusActivities":false,"showErrors":false,"unitid":"","dataType":"MCoils","adr":"512","quantity":"2","server":"22686392499a3421","emptyMsgOnFail":false,"keepMsgProperties":false,"x":410,"y":160,"wires":[["16eb1d6b8a7d795b"],["16eb1d6b8a7d795b"]]},{"id":"e4b7928e2066e054","type":"inject","z":"831fc420f4ebbd11","name":"true","props":[{"p":"payload"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"[1]","payloadType":"str","x":110,"y":140,"wires":[["a77c9a08d7eb6d8b"]]},{"id":"cd9bd1e4c9e9e91b","type":"inject","z":"831fc420f4ebbd11","name":"false","props":[{"p":"payload"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"false","payloadType":"bool","x":110,"y":180,"wires":[["a55006eaeed0a283"]]},{"id":"b14034cf6da51f04","type":"comment","z":"831fc420f4ebbd11","name":"Read (FC3)","info":"","x":170,"y":360,"wires":[]},{"id":"ec9dc6d7ed4b0ab7","type":"comment","z":"831fc420f4ebbd11","name":"Read (FC1)","info":"","x":170,"y":260,"wires":[]},{"id":"85b6167eb54a1885","type":"comment","z":"831fc420f4ebbd11","name":"Write (FC15)","info":"","x":170,"y":80,"wires":[]},{"id":"16eb1d6b8a7d795b","type":"debug","z":"831fc420f4ebbd11","name":"","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"false","statusVal":"","statusType":"auto","x":670,"y":160,"wires":[]},{"id":"8137850639a38754","type":"modbus-write","z":"831fc420f4ebbd11","name":"FC16 - 512","showStatusActivities":false,"showErrors":true,"unitid":"","dataType":"MHoldingRegisters","adr":"512","quantity":"4","server":"22686392499a3421","emptyMsgOnFail":false,"keepMsgProperties":false,"x":510,"y":540,"wires":[["9fee466534bfcb96"],["9fee466534bfcb96"]]},{"id":"1302b842e34b4158","type":"comment","z":"831fc420f4ebbd11","name":"Control - Write ","info":"","x":160,"y":500,"wires":[]},{"id":"495bf7b5d0b3bf6e","type":"function","z":"831fc420f4ebbd11","name":"","func":"msg.payload = [768,2560,7967,7967];\nreturn msg;","outputs":1,"noerr":0,"initialize":"","finalize":"","libs":[],"x":340,"y":540,"wires":[["8137850639a38754","9fee466534bfcb96"]]},{"id":"476bbe061b1548e8","type":"inject","z":"831fc420f4ebbd11","name":"","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"","payloadType":"date","x":180,"y":540,"wires":[["495bf7b5d0b3bf6e"]]},{"id":"4ec9582cad76e6e1","type":"comment","z":"831fc420f4ebbd11","name":"Control - Register","info":"","x":150,"y":620,"wires":[]},{"id":"9fee466534bfcb96","type":"debug","z":"831fc420f4ebbd11","name":"","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"false","statusVal":"","statusType":"auto","x":370,"y":660,"wires":[]},{"id":"cd59e6b7c777b8a6","type":"modbus-read","z":"831fc420f4ebbd11","name":"FC3 - 512","topic":"","showStatusActivities":false,"logIOActivities":false,"showErrors":false,"unitid":"","dataType":"HoldingRegister","adr":"512","quantity":"4","rate":"5","rateUnit":"h","delayOnStart":false,"startDelayTime":"","server":"22686392499a3421","useIOFile":false,"ioFile":"","useIOForPayload":false,"emptyMsgOnFail":false,"x":180,"y":660,"wires":[["9fee466534bfcb96"],[]]},{"id":"9a2e7479f0e1e022","type":"comment","z":"831fc420f4ebbd11","name":"Status/Process","info":"","x":160,"y":760,"wires":[]},{"id":"52797a2eedd88e4e","type":"debug","z":"831fc420f4ebbd11","name":"","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"false","statusVal":"","statusType":"auto","x":370,"y":800,"wires":[]},{"id":"a658420c4764334e","type":"modbus-read","z":"831fc420f4ebbd11","name":"FC4 - 0","topic":"","showStatusActivities":false,"logIOActivities":false,"showErrors":false,"unitid":"","dataType":"InputRegister","adr":"0","quantity":"12","rate":"5","rateUnit":"h","delayOnStart":false,"startDelayTime":"","server":"22686392499a3421","useIOFile":false,"ioFile":"","useIOForPayload":false,"emptyMsgOnFail":false,"x":170,"y":800,"wires":[["52797a2eedd88e4e"],[]]},{"id":"a77c9a08d7eb6d8b","type":"function","z":"831fc420f4ebbd11","name":"Both ON","func":"msg.payload = [1,1];\nreturn msg;","outputs":1,"noerr":0,"initialize":"","finalize":"","libs":[],"x":240,"y":140,"wires":[["2f63c8fea707c9d0"]]},{"id":"a55006eaeed0a283","type":"function","z":"831fc420f4ebbd11","name":"Both OFF","func":"msg.payload = [0,0];\nreturn msg;","outputs":1,"noerr":0,"initialize":"","finalize":"","libs":[],"x":240,"y":180,"wires":[["2f63c8fea707c9d0"]]},{"id":"9f170ed278aaf860","type":"comment","z":"831fc420f4ebbd11","name":"///////////////////// Power Measurment (750-495) /////////////////////","info":"","x":210,"y":440,"wires":[]},{"id":"a145a67a8c33463d","type":"comment","z":"831fc420f4ebbd11","name":"///////////////////// Digital Output (750-509) /////////////////////","info":"","x":190,"y":40,"wires":[]},{"id":"22686392499a3421","type":"modbus-client","name":"","clienttype":"tcp","bufferCommands":true,"stateLogEnabled":false,"queueLogEnabled":false,"failureLogEnabled":true,"tcpHost":"192.168.50.25","tcpPort":"502","tcpType":"DEFAULT","serialPort":"/dev/ttyUSB","serialType":"RTU-BUFFERD","serialBaudrate":"9600","serialDatabits":"8","serialStopbits":"1","serialParity":"none","serialConnectionDelay":"100","serialAsciiResponseStartDelimiter":"0x3A","unit_id":1,"commandDelay":1,"clientTimeout":1000,"reconnectOnTimeout":true,"reconnectTimeout":2000,"parallelUnitIdsAllowed":true}]
